Same model may have multiple batches, images only for reference.

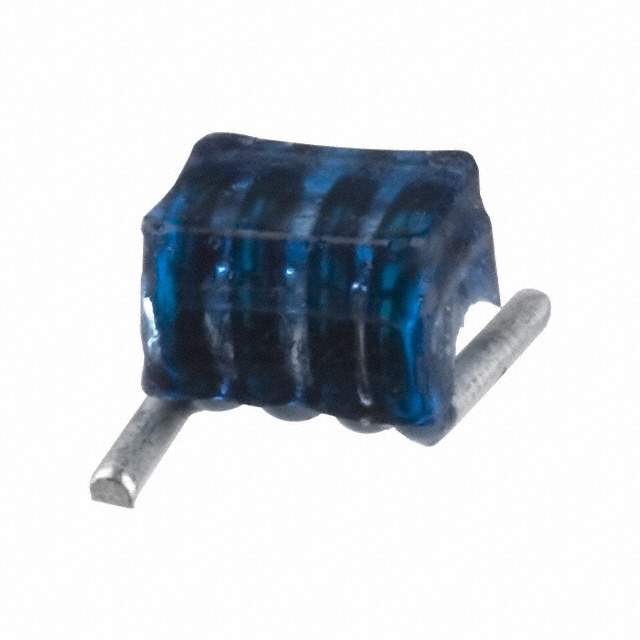

4426R-7 Real Image
Same model may have multiple batches, images only for reference.

4426R-7

Part No 4426R-7
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 22NH 3A SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 8 Weeks
Features Unshielded Wirewound Inductor - Nonstandard
Manufacturer API Delevan Inc.
Series 4426R
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 4426R-7 TR 400, DN7745DKR, 4426R-7 TR 200, 4426R7, DN7745TR, DN7745CT
Quantity per package 200
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906895-4426R-7
Ultra Librarian 3D Model Ultra Librarian 4426R-7 CAD Model

Description

The 4426R series unshielded wirewound inductor from API Delevan Inc. is a nonstandard component that operates in a temperature range of -55 degrees Celsius to 125 degrees Celsius.

  • Component Type: Inductor
  • Shielded: Unshielded
  • Inductor Type: Wirewound
  • Operating Temperature: -55 degrees Celsius to 125 degrees Celsius
  • Packaging: Reel-Tray
  • Mounting Type: Surface Mountable
  • Package Quantity: 200 pieces
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 8 weeks
  • REACH Status: Unaffected by REACH
  • HTSUS Code: 8504.50.8000
  • Alternative Part Numbers: 4426R-7 TR 400, DN7745DKR, 4426R-7 TR 200, 4426R7, DN7745TR, and DN7745CT
