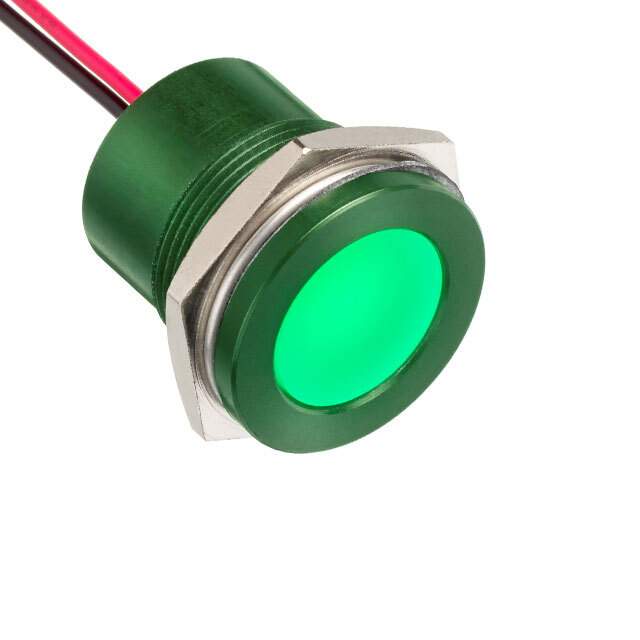

Q22F5AGXXSG12AE Real Image
Same model may have multiple batches, images only for reference.

Q22F5AGXXSG12AE

Part No Q22F5AGXXSG12AE
Manufacturer Apem Inc.
Catalog Panel Indicators, Pilot Lights
Description INDICATOR 12V 22MM FLUSH GREEN / LED Panel Indicator Green Diffused 12V 40mA Wire Leads - 7.87" (200.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr APEM Inc.
Series Q22
Package Bag
Type LED
Lamp Color Green
Lens Color Green
Lens Transparency Diffused
Ratings AC/DC
Voltage 12V
Current 40mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.87" (22.10mm)
Lens Size 18.00mm Dia
Lens Style Round with Flat Top
Millicandela Rating 980mcd
Termination Style Wire Leads - 7.87" (200.00mm)
Ingress Protection IP67
Base Product Number Q22F5AGXXSG
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 679-3775
Standard Package 25
Win Source Part Number 1190941-Q22F5AGXXSG12AE
Ultra Librarian 3D Model Ultra Librarian Q22F5AGXXSG12AE CAD Model

Description

The APEM Inc. Q22F5AGXXSG12AE is a green LED panel indicator with a diffused lens.

  • Manufacturer: APEM Inc.
  • LED Color: Green
  • Lens Type: Diffused
  • Voltage Rating: 12V
  • Current Rating: 40mA
  • Lens Diameter: 18.00mm
  • Lens Shape: Round, Flat Top
  • Panel Cutout: 0.87" (22.10mm) Round
  • LED Lifetime: 40,000 hours
  • Millicandela Rating: 980mcd
  • Package: Bag
  • Wire Leads Length: 7.87" (200.00mm)
  • Series: Q22
  • ECCN: EAR99
