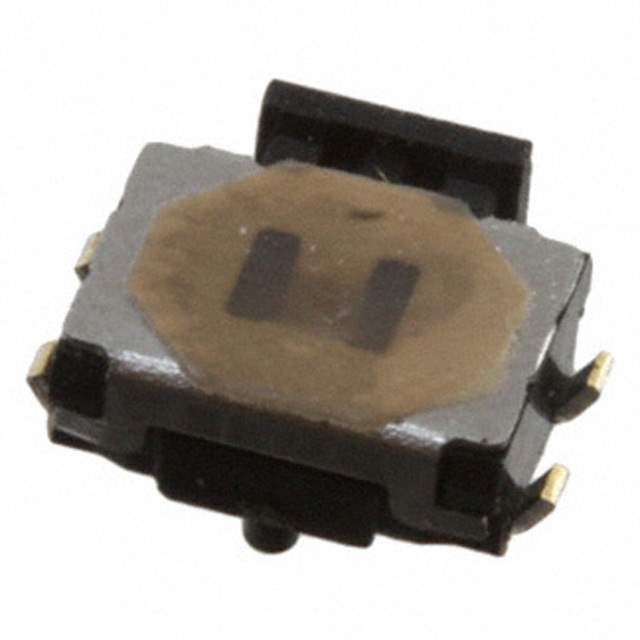

Same model may have multiple batches, images only for reference.

APTCLGTVTR

Name: APTCLGTVTR
Brand: Apem Inc.
SKU: 1031511
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	APTCLGTVTR
Manufacturer	Apem Inc.
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	APEM Inc.
Series	APTC
Package	Tape & Reel
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Rectangular Button
Mounting Type	Surface Mount, Right Angle
Actuator Orientation	Side Actuated
Termination Style	Gull Wing
Outline	5.54mm x 3.50mm
Illumination	Non-Illuminated
Operating Force	220gf
Features	Grounding Pin
Temperature Range - Operating	-25°C ~ 70°C
Actuator Material	Thermoplastic
Switch Travel	0.30mm
Base Product Number	APTCL
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	679-2321-6,679-2321-1,679-2321-2
Standard Package	3,000
Win Source Part Number	1031511-APTCLGTVTR
Ultra Librarian 3D Model	Ultra Librarian APTCLGTVTR CAD Model

Description

The APTC series tactile switch is a high-quality switch that is perfect for a variety of applications.

Termination Style: Gull Wing
Grounding Pin: Yes
Illumination: Non-Illuminated
Switch Function: SPST-NO, Off-Mom
Actuator Type: Rectangular Button
Switch Travel: 0.30mm
Operating Force: 220gf
Mechanical Life: Not Specified
Mounting Type: Surface Mount, Right Angle
Outline: 5.54mm x 3.50mm
Operating Temperature Range: -25°C to 70°C
Alternative Parts: EVQ-PUC02K, EVQ-PUL02K, EVQ-PUA02K, PTS525SM08SMTRLFS, TL3901AGQF180, and TL1014AF160QG
