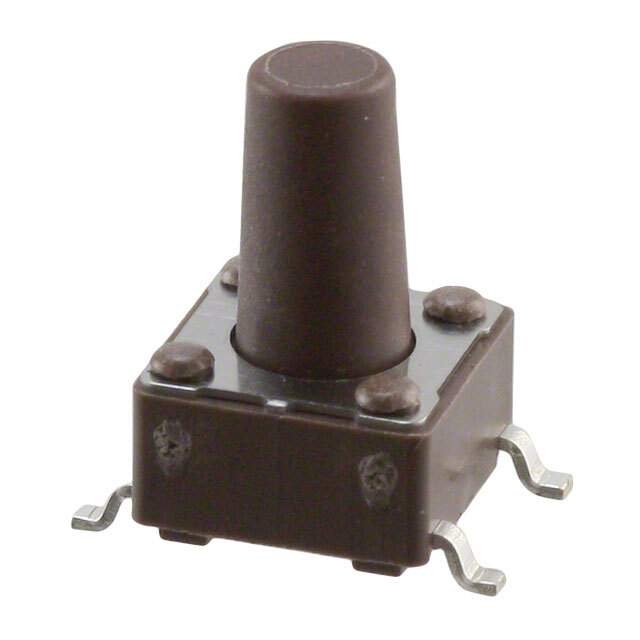

Same model may have multiple batches, images only for reference.

ADTSM65NVTR

Name: ADTSM65NVTR
Brand: Apem Inc.
SKU: 996687
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ADTSM65NVTR
Manufacturer	Apem Inc.
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	APEM Inc.
Series	ADTS
Package	Tape & Reel
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	9.50mm
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.20mm x 6.20mm
Illumination	Non-Illuminated
Operating Force	160gf
Features	Tactile Feedback
Temperature Range - Operating	-25°C ~ 70°C
Actuator Material	Polyamide (PA), Nylon
Switch Travel	0.25mm
Base Product Number	ADTSM
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	679-2386-1,679-2386-2,679-2386-6,ADTSM65NVTR-ND
Standard Package	380
Win Source Part Number	996687-ADTSM65NVTR
Ultra Librarian 3D Model	Ultra Librarian ADTSM65NVTR CAD Model

Description

The ADTSM65NVTR tactile switch is a single-pole single-throw normally open (SPST-NO) switch from the ADTS series of APEM Inc.

Termination style: gull wing
Features: tactile feedback
Package: tape and reel
Mounting style: surface mount device (SMD)
Switch function: Off-Mom
Actuator type: standard with a switch travel of 0.25mm
Contact rating: 0.05A @ 12VDC
Operating force: 160gf
Temperature range for operating: between -25°C to 70°C
Actuator height off PCB, vertical: 9.50mm
