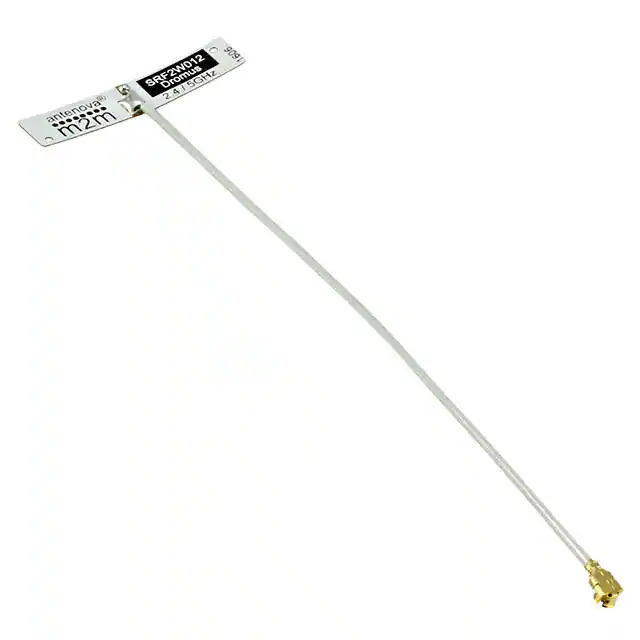

SRF2W012-100 Antenova
Same model may have multiple batches, images only for reference.

SRF2W012-100

Part No SRF2W012-100
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.4GHZ FLAT PATCH / 2.4GHz, 5.4GHz WLAN Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz 4dBi U.FL (UMCC), IPEX MHF1 Adhesive
Datasheet
SRF2W012-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series Dromus
Package Bulk
Product Status Active
RF Family/Standard WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.4GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz
Antenna Type Flat Patch
Number of Bands 2
VSWR 1.8
Return Loss -14dB
Gain 4dBi
Features -
Termination U.FL (UMCC), IPEX MHF1
Ingress Protection -
Mounting Type Adhesive
Height (Max) 0.006" (0.15mm)
Applications WLAN
Base Product Number SRF2W012
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 1353711-SRF2W012-100
Ultra Librarian 3D Model Ultra Librarian SRF2W012-100 CAD Model

Description

The SRF2W012-100 is an RF antenna from Antenova.

  • Series: Dromus
  • Applications: WLAN
  • Frequency: 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz
  • Gain: 4dBi
  • VSWR: 1.8
  • Antenna Type: Flat Patch
  • Height (Max): 0.006" (0.15mm)
  • Mounting Type: Adhesive
  • Termination: U.FL (UMCC), IPEX MHF1
  • Product Status: Active
  • REACH: Unaffected
