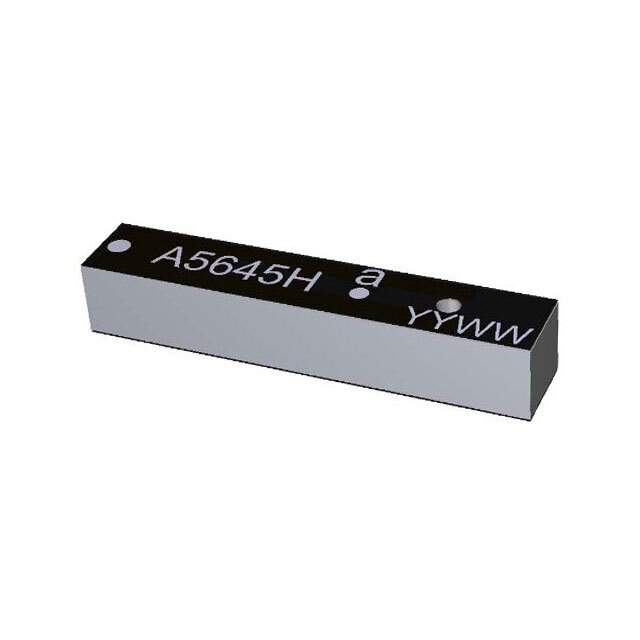

A5645H Real Image
Same model may have multiple batches, images only for reference.

A5645H

Part No A5645H
Manufacturer Antenova
Catalog RF Antennas
Description A5645H MICA 2.4 GHZ SMD HALOGEN / 2.45GHz 802.11a/b/g/n, Bluetooth, Wi-Fi, ZigBee™ Chip RF Antenna 2.4GHz ~ 2.5GHz Solder Surface Mount
Datasheet
A5645H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Antenova
Series Mica
Package Tape & Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 1.8
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.130" (3.30mm)
Applications 802.11a/b/g/n, Bluetooth, Wi-Fi, ZigBee™
Base Product Number A5645
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Other Names 627-1123-6,627-1123-2,627-1123-1
Standard Package 2,000
Win Source Part Number 1205381-A5645H
Ultra Librarian 3D Model Ultra Librarian A5645H CAD Model

Description

The Antenova Mica RF chip antenna is a high-performance antenna designed for 802.11a/b/g/n, Bluetooth, Wi-Fi, and ZigBee applications.

  • Application: 802.11a/b/g/n, Bluetooth, Wi-Fi, ZigBee
  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Frequency (Center/Band): 2.45GHz
  • Mounting Type: SMD (SMT)
  • Termination: Solder
  • Packaging: Tape & Reel
  • Standard Package: 2,000
  • VSWR: 1.8
  • Frequency Group: UHF (2GHz ~ 3GHz)
  • Antenna Type: Chip
  • Height: 0.130" (3.30mm)
