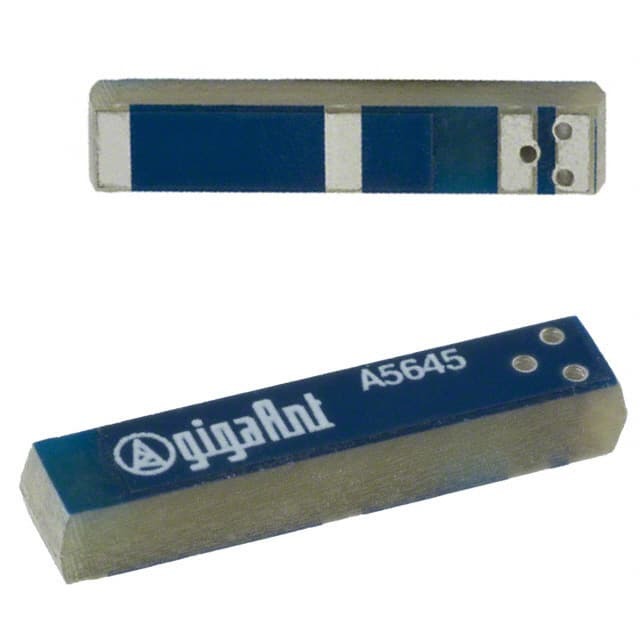

Same model may have multiple batches, images only for reference.
A5645
Same model may have multiple batches, images only for reference.

A5645

Part No A5645
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 2.4GHZ PCB TRACE SLDR SMD
Datasheet
A5645 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series Mica
Package Tape & Reel
Product Status Obsolete
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type PCB Trace
Number of Bands 1
VSWR 1.5
Gain 1.2dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.130" (3.30mm)
Applications Bluetooth, WiMedia™, WLAN, Zigbee™
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 852735-A5645
Ultra Librarian 3D Model Ultra Librarian A5645 CAD Model

Description

The Mica RF Antenna (Part Number: 852735-A5645) is a versatile component suitable for various wireless applications such as Bluetooth, WiMedia™, WLAN, and Zigbee™.

  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Frequency Group: UHF (2GHz ~ 3GHz)
  • VSWR: 1.5
  • Gain: 1.2dBi
  • Antenna Type: PCB trace antenna
  • Termination: solder
  • Package: tape & reel
  • Standard Package: 2,000 pcs
  • Height: 0.130" (3.30mm)
  • Mounting Type: surface mountable
  • Status: obsolete
