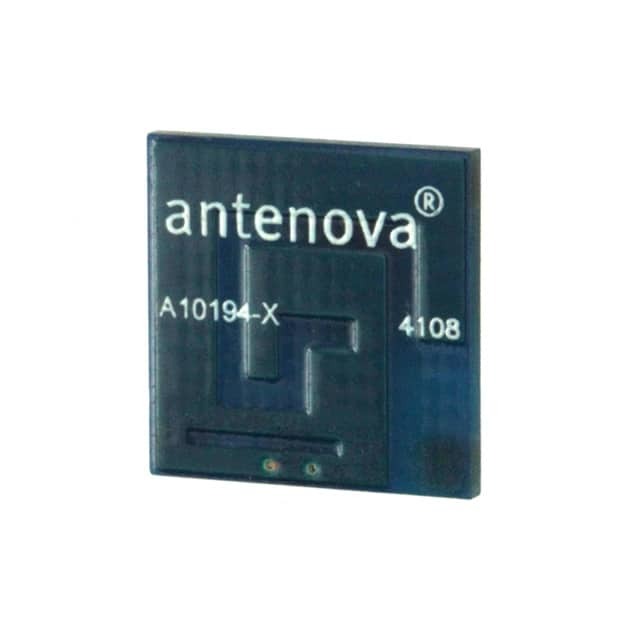

Same model may have multiple batches, images only for reference.
A10194
Same model may have multiple batches, images only for reference.

A10194

Part No A10194
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 2.4GHZ/5GHZ PCB TRACE SLD
Datasheet
A10194 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series Mixtus
Package Tape & Reel
Product Status Obsolete
RF Family/Standard WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5GHz
Antenna Type PCB Trace
Number of Bands 2
VSWR 1.4, 1.8
Return Loss -11dB, -15dB
Gain 1.8dBi, 4.1dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.035" (0.90mm)
Applications WLAN
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.71.0000
Win Source Part Number 858790-A10194
Ultra Librarian 3D Model Ultra Librarian A10194 CAD Model

Description

The 858790-A10194 is a versatile RF antenna designed for WLAN applications and is part of the Mixtus series from Antenova.

  • Series: Mixtus
  • Package: Tape & Reel
  • Pieces per Package: 2,000
  • Termination: Solder
  • Mounting Type: Surface Mount
  • Frequency: 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5GHz
  • Gain: 1.8dBi, 4.1dBi
  • VSWR: 1.4, 1.8
  • Return Loss: -11dB, -15dB
  • Lifecycle Status: Obsolete
