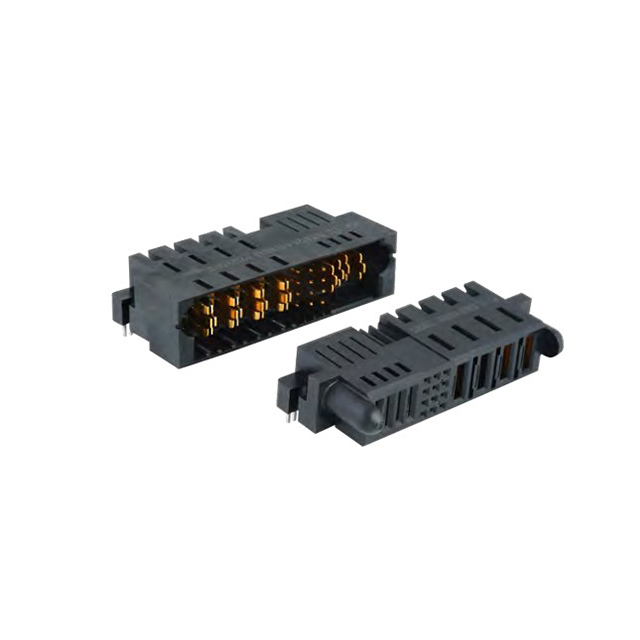

PM324MBAOSP Anderson Power Products, Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PM324MBAOSP

Part No PM324MBAOSP
Manufacturer Anderson Power Products, Inc.
Catalog Rectangular Connectors - Headers, Male Pins
Description POWERMOD 3X24 PIN STRAIGHT PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Connector Type Header
Contact Type Male Pin, Power
Pitch - Mating 0.197" (5.00mm)
Number of Positions 24
Number of Rows 3
Row Spacing - Mating 0.197" (5.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole
Termination Solder
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.600" (15.24mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin Alloy
Contact Material Copper Alloy
Insulation Material Polyphenylene Sulfide (PPS)
Features Board Lock
Temperature Range - Operating -55°C ~ 180°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 30A
Voltage Rating 600V
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1634504-PM324MBAOSP
Ultra Librarian 3D Model Ultra Librarian PM324MBAOSP CAD Model
