BD2425NCSR Anaren – Price, Stock & Datasheet

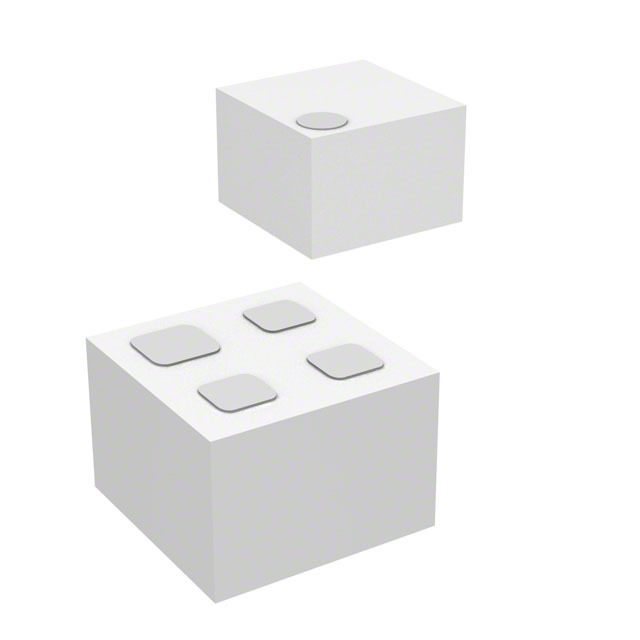

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Frequency Range 2.4GHz ~ 2.5GHz
Impedance - Unbalanced/Balanced 50 / -Ohm
Phase Difference 2°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Case / Package 0404 (1010 Metric)
Mounting Type Surface Mount
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1597738-BD2425NCSR
Ultra Librarian 3D Model Ultra Librarian BD2425NCSR CAD Model
