Product Overview: REF193GSZ Voltage Reference

The REF193GSZ from Analog Devices Inc. is a precision voltage reference that provides a stable output voltage over a wide range of operating conditions. This component is designed to offer a reliable solution for applications requiring high accuracy and low power consumption.

Key Features

• Output Voltage: The REF193GSZ offers a fixed output voltage of 3.0V, making it suitable for various analog and digital circuits.
• High Accuracy: With an initial accuracy of ±0.2%, this voltage reference ensures precise voltage regulation for sensitive applications.
• Low Temperature Coefficient: It boasts an excellent temperature coefficient, typically 8ppm/°C, providing stable performance across a wide temperature range.
• Low Dropout Voltage: The device operates with a low dropout voltage, which enhances efficiency and allows operation from nearly depleted power sources.
• Low Noise: The REF193GSZ features low output noise, making it ideal for high-performance data converters and precision amplifiers.
• Wide Supply Range: It supports a wide supply range from 3.3V to 12V, offering flexibility in various system designs.

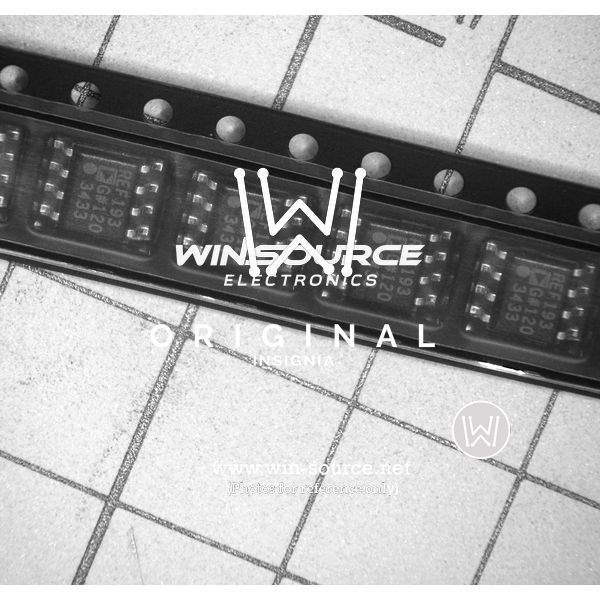

• Package: The component is available in an 8-lead SOIC package, ensuring compatibility with standard surface-mount assembly processes.

Applications

The REF193GSZ is versatile and can be used in a multitude of applications, such as:

• Data conversion (ADCs/DACs)
• Portable battery-powered devices
• Precision instrumentation
• Industrial control systems
• Automotive electronics

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the REF193GSZ is no exception. It is rigorously tested to ensure high reliability and performance consistency. This makes it a trusted choice for engineers and designers looking for a voltage reference that can deliver precision and stability in their critical applications.
