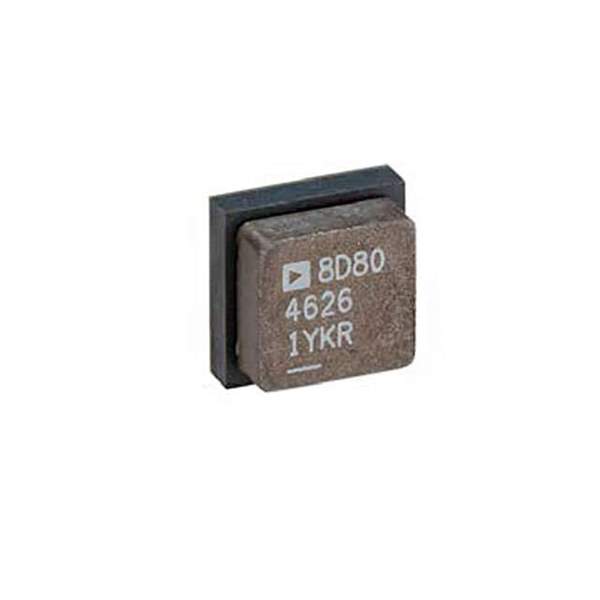

Product Overview: LTM4626IY from Analog Devices Inc.

The LTM4626IY is a high-performance, micro-module (μModule) step-down regulator from Analog Devices Inc., designed for a variety of applications that demand high efficiency and compact size. This innovative power management solution integrates the inductor, power switches, DC/DC controller, compensation circuitry, and the necessary support components all within a compact, surface-mount package.

Key Features

• Wide Input Voltage Range: The LTM4626IY operates from a 4V to 20V input voltage range, making it versatile for a broad spectrum of applications, including industrial, automotive, and telecommunications systems.
• Adjustable Output Voltage: It provides an adjustable output voltage from 0.6V to 5.5V, allowing for flexibility in various design implementations that require different voltage levels.
• High Efficiency: With its high-efficiency design, the LTM4626IY is capable of delivering up to 12A of continuous output current with minimal power loss, ensuring reliable performance in demanding situations.
• Compact Footprint: The micro-module design encapsulates the advanced circuitry in a 6.25mm x 6.25mm x 5.01mm BGA package, greatly reducing the solution footprint on the PCB and simplifying the design process.
• Integrated Thermal Management: The device features robust thermal performance, thanks to its over-molded and encapsulated design which enhances heat dissipation.
• Protection Features: It includes overvoltage, overcurrent, and over-temperature protection for improved system reliability and safety.

Applications

The LTM4626IY is ideal for use in space-constrained applications that require a high current, efficient power supply solution. It is well-suited for:

• Datacom and Telecom Systems
• Medical and Industrial Equipment
• FPGAs, DSPs, and ASICs Power Supplies
• Automotive Electronics
• Point-of-Load Applications

In summary, the LTM4626IY from Analog Devices Inc. is a highly integrated, efficient, and versatile micro-module regulator, offering designers a compact, high-performance power management solution for a wide range of applications.
