Product Overview: LTC6994CDCB-1#PBF from Analog Devices Inc.

The LTC6994CDCB-1#PBF is a versatile, programmable delay block timer with a range of applications in timing, pulse generation, and time delay functions. Manufactured by Analog Devices Inc., this monolithic, one-shot timer is part of the TimerBlox® family, which is known for its precision and ease of use. The LTC6994 can be configured with external resistors for a delay range of 1μs to 33.6 seconds.

Key Features:

• Delay Range: The product offers a wide delay range, making it suitable for diverse applications that require precise timing adjustments.
• CMOS Output Driver: The LTC6994 features a CMOS output driver, which provides a robust and reliable signal for triggering subsequent stages in electronic circuits.
• Voltage Range: It operates on a supply voltage range from 2.25V to 5.5V, accommodating various power requirements and ensuring compatibility with both low and standard voltage logic levels.
• Low Power Consumption: The device is designed for low power operation, which is critical for battery-powered and portable applications where energy efficiency is paramount.
• Accuracy: The LTC6994 provides high accuracy in timing delays, ensuring precise control in timing-critical applications.
• Temperature Stability: The product maintains its performance across a wide temperature range, making it suitable for use in environments with varying temperatures.

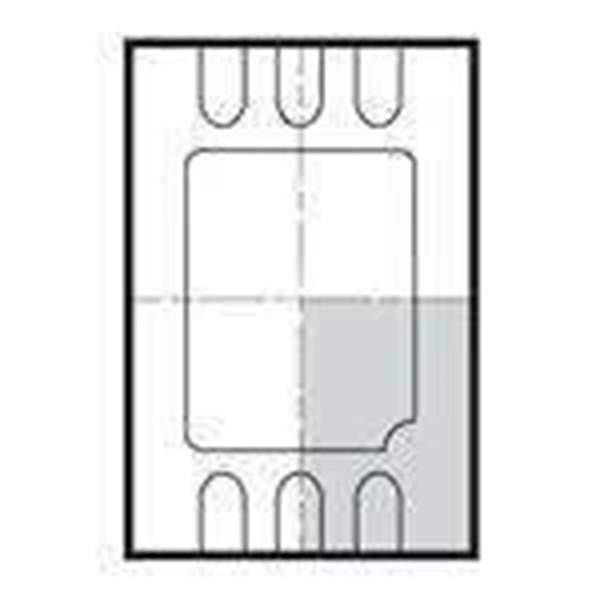

• Packaging: This timer comes in a compact, 6-pin Thin DFN package, which is ideal for space-constrained applications.

Applications:

The LTC6994CDCB-1#PBF is designed to serve a multitude of applications, including but not limited to:

• Waveform generation
• Pulse shaping
• Time delay generation
• Frequency discrimination
• Edge detection
• Event timing

With its programmable delay feature and high level of integration, the LTC6994CDCB-1#PBF by Analog Devices Inc. is an excellent choice for designers seeking a reliable and flexible timing solution.
