Product Overview: LTC6247HTS8#TRPBF from Analog Devices Inc.

The LTC6247HTS8#TRPBF is a high-performance, low-noise operational amplifier from Analog Devices Inc., designed to meet the needs of a wide range of applications that require precision and stability. This op-amp is part of a family of dual and quad operational amplifiers which feature low offset voltage, low input bias current, and high speed operation.

With its low noise characteristics and fast settling time, the LTC6247HTS8#TRPBF is ideal for high-speed signal conditioning, filtering, and data acquisition systems. The device operates over a wide supply range of 2.8V to 11V (±1.4V to ±5.5V), allowing it to be used in both single-supply and split-supply configurations, providing design flexibility to engineers.

Key Features:

• High Speed: The LTC6247HTS8#TRPBF boasts a gain-bandwidth product of 50MHz, which is suitable for high-frequency signal processing applications.
• Low Noise: With a low input-referred noise voltage of 8.5nV/√Hz, this op-amp is perfect for applications requiring low-noise performance.
• Low Offset Voltage: The device features a low input offset voltage, which enhances the accuracy of the signal processing.
• Power Efficiency: The LTC6247HTS8#TRPBF has a quiescent current of 1mA per amplifier, making it an energy-efficient choice for battery-powered devices.
• Operating Temperature Range: This op-amp is designed to operate reliably in extreme temperatures, with an operating range from -40°C to 125°C.

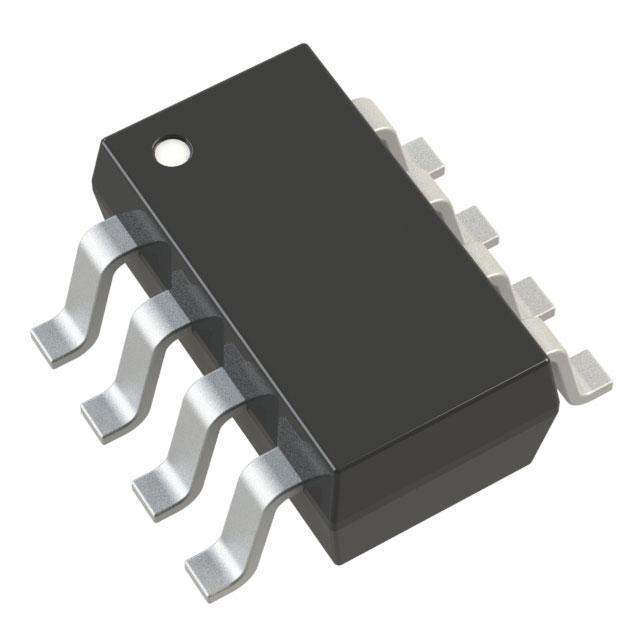

• Package: It is available in a compact TSOT-23 package, which is suitable for space-constrained applications.

Applications:

The LTC6247HTS8#TRPBF is a versatile component that can be used in various applications, including:

• Active Filters
• Data Acquisition Systems
• Medical Instrumentation
• Driving A/D Converters
• Buffering DAC Outputs
• Audio Applications

Overall, the LTC6247HTS8#TRPBF from Analog Devices Inc. is a high-quality operational amplifier that offers a balance of speed, precision, and low-noise operation, making it a solid choice for designers looking to enhance system performance in a range of electronic applications.
