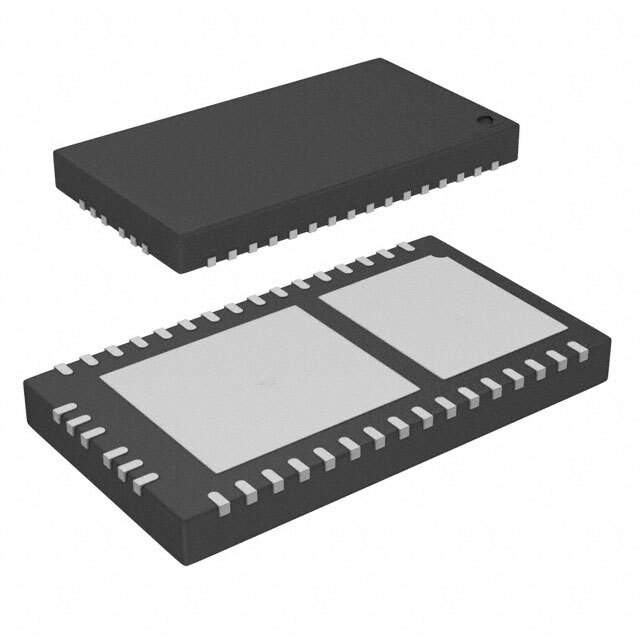

LTC4233IWHH#PBF

Part No LTC4233IWHH#PBF
Manufacturer Analog Devices Inc.
Catalog PMIC - Hot Swap Controllers
Description Hot Swap Controller 1-CH 15V N-Channel Positive Voltage 38-Pin QFN EP Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package QFN
Features Auto Retry
Maximum Operating Temperature 85 °C
Max Output Current 10 A
Max Supply Voltage 15 V
Min Operating Temperature -40 °C
Min Supply Voltage 2.9 V
Mount Surface Mount
Number of Channels 1
Number of Pins 38
Operating Supply Current 1.6 mA
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8542310000
Win Source Part Number 997470-LTC4233IWHH#PBF
Categories PMIC - Hot Swap Controllers
Manufacturer Analog Devices Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LTC4233IWHH#PBF CAD Model

Description

The LTC4233IWHH#PBF is a cutting-edge, Hot Swap™ controller integrated circuit (IC) designed by Analog Devices Inc., a leader in high-performance analog technology. This product is engineered to provide safe board insertion and removal from a live backplane or other power sources. The LTC4233IWHH#PBF is designed to control the supply voltage to the load during the hot swapping operation, ensuring that the electronic system operates reliably without disruption or damage.

Key Features

  • High Side Power Control: This device operates on the high side of the power supply, allowing for the safe insertion and removal of boards in a live system.
  • Wide Operating Voltage Range: It supports a broad range of supply voltages from 2.9V to 15V, accommodating various applications and system requirements.
  • Adjustable Current Limit: The LTC4233IWHH#PBF offers an adjustable current limit feature which provides additional protection by preventing excessive current from damaging the system.
  • Overcurrent Fault Timer: The IC includes a timer that allows the system to recover from transient overcurrent conditions without shutting down, enhancing system uptime.
  • Compact Package: Housed in a compact 20-lead QFN package, the LTC4233IWHH#PBF is suitable for space-constrained applications.
  • High Temperature Operation: With an industrial operating temperature range, this device is reliable in harsh environments.

Applications

The LTC4233IWHH#PBF is ideal for a variety of applications where hot swap functionality is required. This includes:

  • Server and Storage Systems
  • Network Routers and Switches
  • Telecommunications Equipment
  • Industrial Systems

Product Quality and Support

Analog Devices Inc. is known for its commitment to quality and reliability, and the LTC4233IWHH#PBF is no exception. This product is manufactured to the highest standards, ensuring performance and durability. Additionally, Analog Devices provides comprehensive technical support for designers and engineers, including detailed datasheets, application notes, and design tools to facilitate the integration of the LTC4233IWHH#PBF into various systems.
