The LTC2992HMS-1#PBF is a high-performance, dual-channel IC from Analog Devices Inc. designed to monitor power and energy consumption of two rails without the need for external shunt resistors. It is an ideal solution for system-level power monitoring, optimized for a wide range of applications including servers, telecommunications equipment, and industrial systems.

Key Features:

• Integrated Dual Channel: Simultaneously measures current, voltage, and power on two rails, providing comprehensive power consumption data.
• Wide Input Voltage Range: Capable of monitoring voltage from 0V to 100V, making it suitable for a broad spectrum of applications.
• High Accuracy: Offers precision measurements with an accuracy of typically ±0.3% for current and voltage readings.
• Internal Sense Resistors: Eliminates the need for external shunt resistors, reducing system complexity and BOM cost.
• I²C/SMBus Compatible Interface: Allows for easy integration into existing systems with its industry-standard communication protocol.
• Snapshot Mode: Captures transient events with a snapshot mode function, providing valuable diagnostic data.
• Programmable Alert Thresholds: Offers programmable thresholds for overcurrent, overvoltage, and undervoltage conditions, enhancing system protection.

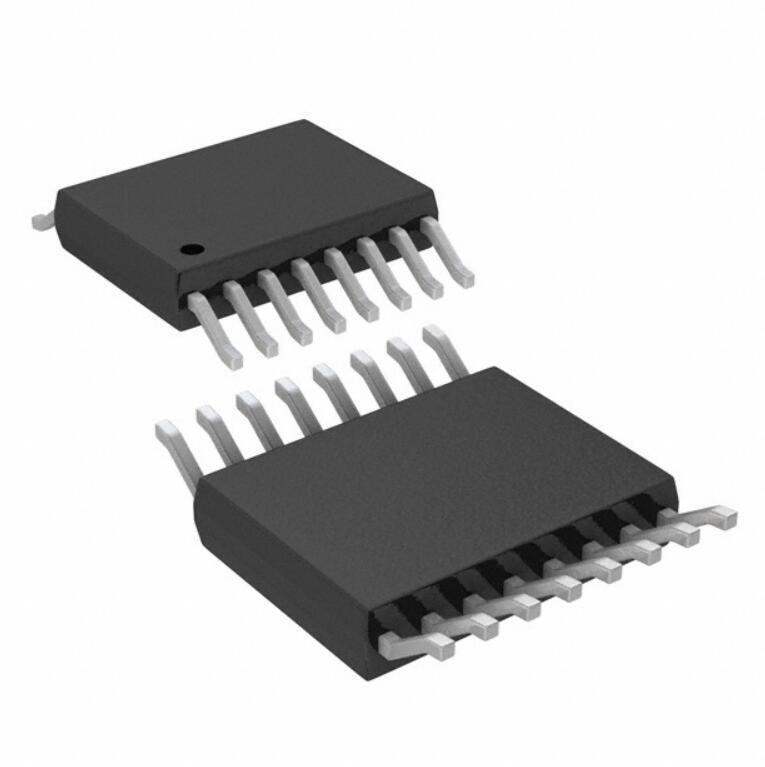

• Compact Package: Housed in a small MSOP-16 package that minimizes board space requirements.

Applications:

• Server Power Supplies
• Networking and Telecommunication Equipment
• Industrial Systems and Automation
• Power Management Systems
• Energy Monitoring Systems

The LTC2992HMS-1#PBF is designed for reliability and ease of use. Its robust feature set enables system designers to optimize power efficiency and enhance system safety with minimal additional components. With its precise measurement capabilities and flexible alert system, the LTC2992HMS-1#PBF from Analog Devices Inc. is a versatile choice for any power-sensitive application.
