Analog Devices Inc. LTC2955CDDB-1 Push Button On/Off Controller

The LTC2955CDDB-1 is a sophisticated push button on/off controller provided by Analog Devices Inc., designed to manage the power functions of electronic devices with precision and ease. This component is an integral part of a system's power management, ensuring that devices can be turned on and off reliably with a simple push button interface.

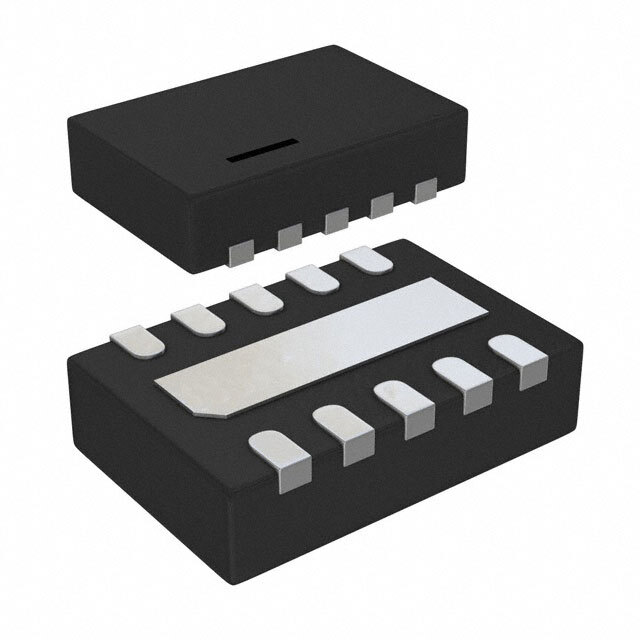

Encased in a small 10-lead DFN package, the LTC2955CDDB-1 is ideal for space-constrained applications. It operates over a wide input voltage range from 2.7V to 26.4V, making it versatile for various applications including portable, industrial, automotive, and embedded systems. The controller's broad voltage range also ensures compatibility with a multitude of power sources, from single-cell batteries to multi-cell battery stacks and wall adapters.

One of the key features of the LTC2955CDDB-1 is its adjustable turn-on and turn-off timers which can be configured via an external capacitor. This allows for customization of the power sequencing to match specific application requirements. The device also includes an under-voltage lockout feature that prevents the system from turning on when the supply voltage is too low, thus safeguarding the system from potential damage due to insufficient power.

The controller provides two modes of operation: push button control and an always-on mode. The push button mode enables system power control through a momentary push button, while the always-on mode bypasses the push button interface for applications that require the system to be powered continuously. Additionally, the LTC2955CDDB-1 integrates a µPower feature that significantly reduces quiescent current, thereby extending battery life in portable applications.

For enhanced system safety, the LTC2955CDDB-1 also features an automatic power-down function in case of a fault condition, such as a stuck push button. This ensures that the system does not remain powered indefinitely, which could lead to overheating or other safety concerns.

Overall, the LTC2955CDDB-1 from Analog Devices Inc. is a robust and flexible solution for managing system power through a user-friendly push button interface, making it a top choice for designers looking to enhance the power management capabilities of their electronic products.
