Product Overview: LTC2640AITS8-LM12#TRMPBF

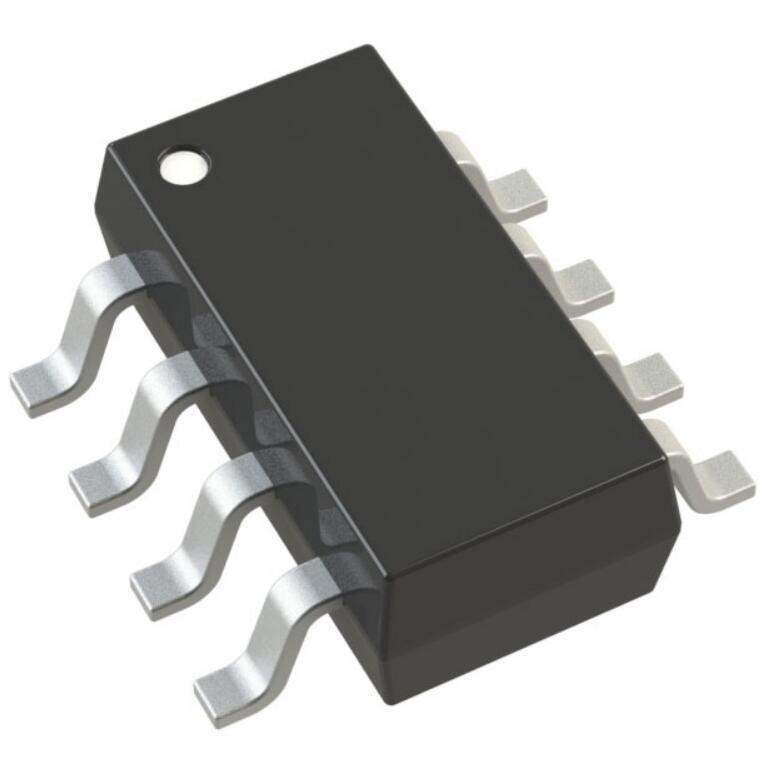

The LTC2640AITS8-LM12#TRMPBF is a high-performance Digital-to-Analog Converter (DAC) component manufactured by Analog Devices Inc., a leader in the design and production of integrated circuits. This precision DAC is part of the LTC2640 series, characterized by its low power consumption and compact TSOT-23 package, making it an ideal choice for space-constrained applications.

The LTC2640AITS8-LM12#TRMPBF features a 12-bit resolution, providing fine granularity in analog output, which is essential for applications requiring precise control and high accuracy. It operates from a supply voltage of 2.7V to 5.5V, offering flexibility in various system designs and ensuring compatibility with both 3.3V and 5V logic levels.

This product is equipped with an internal reference, which eliminates the need for external components and simplifies the design process. The built-in reference ensures stability and reduces the bill of materials for the end product. The DAC also supports a Rail-to-Rail output, giving the maximum dynamic range and allowing the output to swing from the ground to the supply voltage level, maximizing the use of the available voltage range.

The LTC2640AITS8-LM12#TRMPBF utilizes a SPI (Serial Peripheral Interface) for communication, which is a common interface that enables simple integration into most microcontroller-based systems. This serial interface not only simplifies the connection but also minimizes the number of I/O pins required for DAC control, which is particularly beneficial in designs with limited available pins.

With its low power operation, the LTC2640AITS8-LM12#TRMPBF is suitable for battery-powered devices and portable applications. It also features a power-down mode that further reduces power consumption when the DAC is not in active use.

In summary, the LTC2640AITS8-LM12#TRMPBF from Analog Devices Inc. is a versatile, low-power, 12-bit DAC packaged in a small form factor. Its internal reference, Rail-to-Rail output, and SPI interface make it an excellent choice for a wide range of applications, including industrial control systems, medical devices, and any precision analog output requirement.
