Product Overview: LTC2265CUJ-12#PBF

The LTC2265CUJ-12#PBF is a high-performance, 12-bit, 125Msps analog-to-digital converter (ADC) from Analog Devices Inc., a leader in high-performance analog technology. This ADC is designed to deliver exceptional accuracy and speed for demanding applications in communications, imaging, and medical equipment.

Key Features

• Resolution: 12-bit performance enables precise digital representation of analog signals, ensuring fine detail and accuracy in captured data.
• Sampling Rate: With a sampling rate of up to 125Msps (Mega samples per second), the LTC2265CUJ-12#PBF can handle high-speed signals, making it ideal for high-bandwidth applications.
• Low Power Consumption: Designed for power-sensitive applications, this ADC offers a reduced power operation that minimizes power consumption without compromising performance.
• Input Range: The flexible input range allows for easy integration with a variety of signal sources, providing versatility in different system designs.
• DNL and INL: Excellent differential nonlinearity (DNL) and integral nonlinearity (INL) ensure accurate and consistent conversion from analog to digital.
• Output Interface: The device features a user-friendly, parallel LVDS output interface that facilitates high-speed data transfer to downstream digital processors.

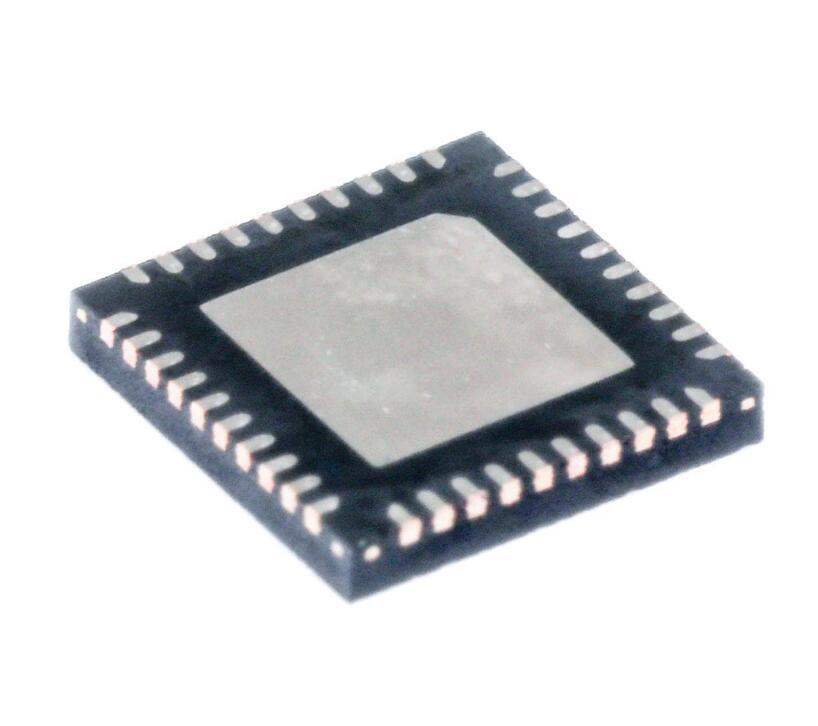

• Packaging: The LTC2265CUJ-12#PBF comes in a compact 40-lead QFN package, which is suitable for space-constrained applications.

Applications

The LTC2265CUJ-12#PBF is well-suited for a wide range of applications that require high-speed data acquisition, such as:

• Wireless and Wired Broadband Communication
• Medical Imaging Systems
• Radar and Satellite Communication Systems
• Digital Oscilloscopes
• Test and Measurement Equipment

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the LTC2265CUJ-12#PBF is no exception. It is manufactured with the highest standards and undergoes rigorous testing to ensure it meets the stringent requirements of industrial and commercial applications.

With its combination of speed, precision, and low power consumption, the LTC2265CUJ-12#PBF ADC is an excellent choice for designers looking to enhance the performance and efficiency of their digital data acquisition systems.
