Analog Devices Inc. LTC2257CUJ-12#PBF

The LTC2257CUJ-12#PBF is a high-performance, low-power 12-bit, 125Msps analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in high-performance analog technology. This ADC is part of a family of pin-compatible converters that offer different resolution and speed options, providing flexibility and upgrade paths for a wide range of applications.

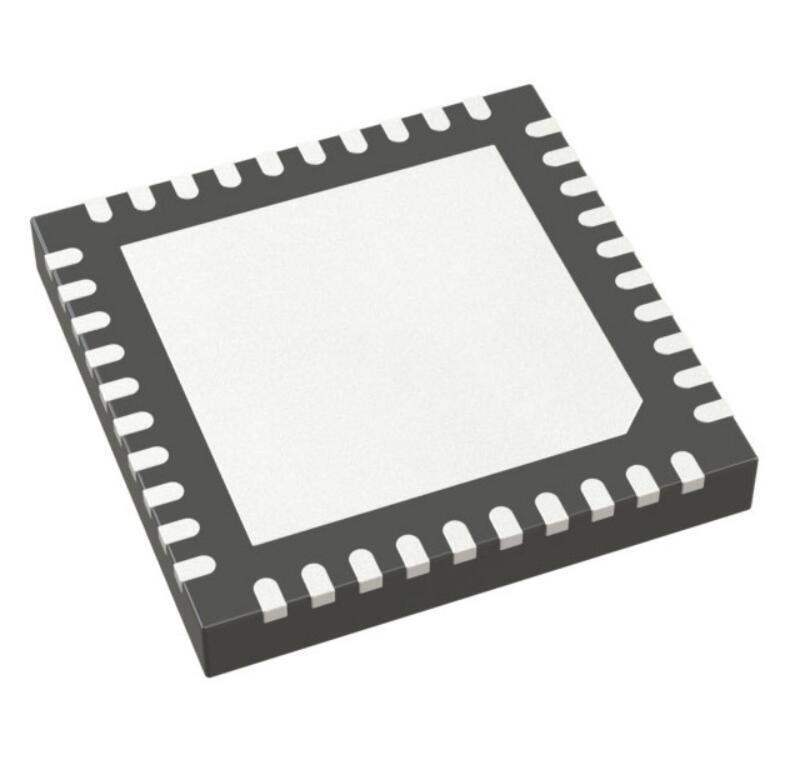

Encased in a compact 40-lead QFN package, the LTC2257CUJ-12#PBF is engineered to deliver exceptional dynamic performance with a 70.6dB signal-to-noise ratio (SNR) and 83dB spurious-free dynamic range (SFDR) at baseband frequencies. This level of accuracy makes it an ideal choice for demanding applications that require high-speed data acquisition, such as medical imaging, communications systems, and instrumentation.

The device operates on a single 1.8V supply, with a separate output driver supply that can be adjusted from 1.8V to 3.3V for compatibility with various logic families. This feature simplifies interfacing with digital signal processors (DSPs) and field-programmable gate arrays (FPGAs), making system integration more straightforward.

One of the key features of the LTC2257CUJ-12#PBF is its support for the DDR LVDS (Double Data Rate Low-Voltage Differential Signaling) digital output, which reduces the number of data lines required and minimizes the I/O interface complexity. This helps to achieve high throughput while maintaining low power consumption. The ADC also includes a flexible digital output randomizer to reduce digital feedback in the system.

The LTC2257CUJ-12#PBF includes an internal bypass capacitor scheme that simplifies the power supply design and reduces external component requirements, leading to a cleaner layout and reduced board space. Additionally, it features optional clock duty cycle stabilizer circuitry to maintain performance over a wide range of clock duty cycles.

In summary, the LTC2257CUJ-12#PBF from Analog Devices Inc. is a versatile and efficient solution for high-speed data acquisition, offering excellent performance and ease of use in a small package. Its robust feature set and compatibility with various logic standards make it a top choice for engineers looking to design high-performance systems.
