Product Overview: LTC1863IGN#WPBF from Analog Devices Inc.

The LTC1863IGN#WPBF is a high-performance, 12-bit, 8-channel, analog-to-digital converter (ADC) produced by the renowned manufacturer Analog Devices Inc. This ADC is designed for applications where space is at a premium, power consumption is critical, and precision is essential. It is an ideal choice for battery-powered devices, portable instruments, and any system where efficient data acquisition is required.

This ADC operates on a single 5V supply, featuring a low power consumption of just 1.3mA at the maximum sampling rate of 200ksps. The LTC1863IGN#WPBF also offers an automatic sleep mode, reducing power consumption to 2µA when not converting, thus extending battery life in portable applications.

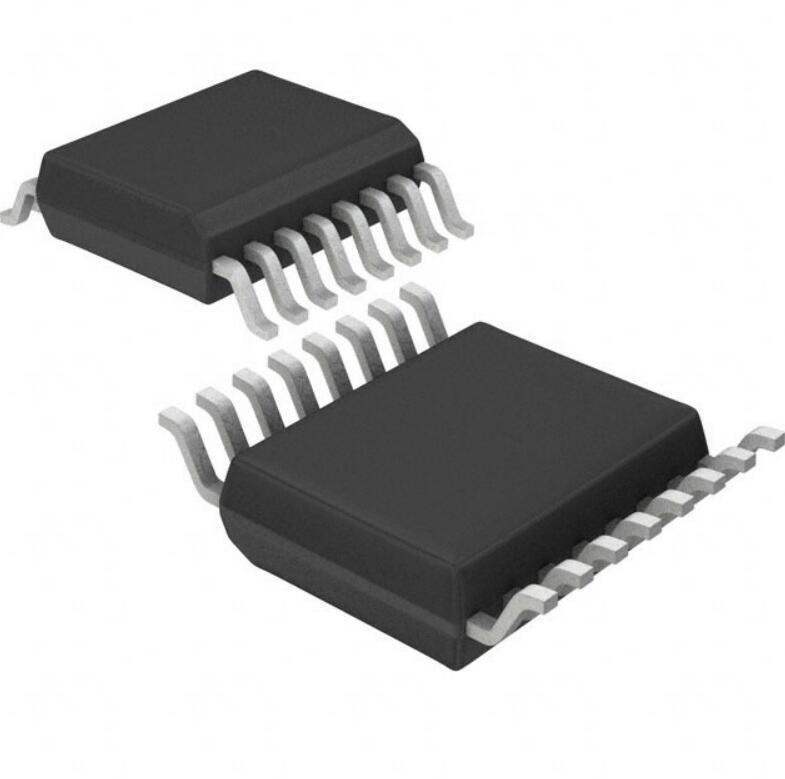

The LTC1863IGN#WPBF comes in a 16-lead narrow SSOP package, which is conducive to space-constrained designs. Its multiplexed input structure allows for the connection of up to 8 single-ended input channels or 4 differential channels, providing flexibility for various signal sources. The device's input range is 0V to the reference voltage, which can be set up to the supply voltage for a wide dynamic range.

This ADC features a serial interface that is compatible with SPI, QSPI, MICROWIRE, and DSP interface standards, making it easy to integrate into a variety of digital systems. The LTC1863IGN#WPBF also includes a no latency feature, which ensures that each conversion is accurate to the last command without delay, a critical feature for real-time applications.

Analog Devices Inc. ensures that the LTC1863IGN#WPBF meets rigorous standards for stability and accuracy. The device's performance is specified over the industrial temperature range (-40°C to +85°C), making it reliable in harsh environments. Whether it's used for process control, medical equipment, or any precision data acquisition system, the LTC1863IGN#WPBF from Analog Devices Inc. represents a blend of performance, power efficiency, and versatility.
