HMC863ALC4 Analog Devices Inc. – Price, Stock & Datasheet

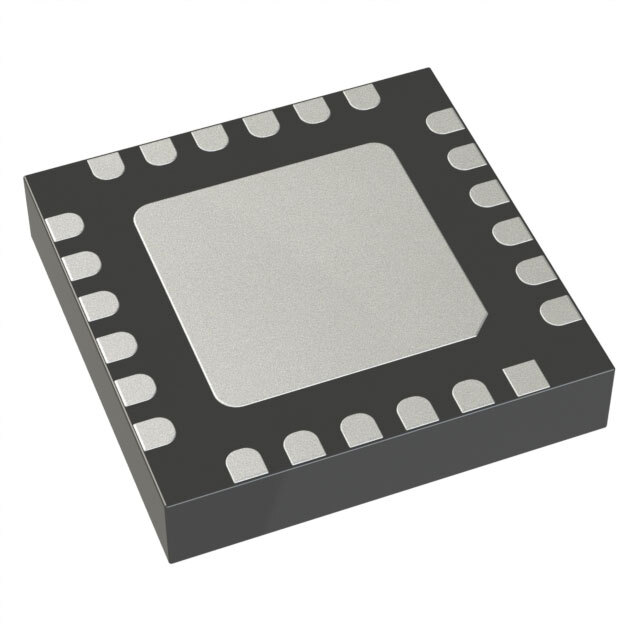

Same model may have multiple batches, images only for reference.

HMC863ALC4

Part No HMC863ALC4
Manufacturer Analog Devices Inc.
Catalog RF Amplifiers
Description IC AMP GPS 24GHZ-29.5GHZ 24CLCC
Datasheet
HMC863ALC4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Bulk
Product Status Active
Frequency 24GHz ~ 29.5GHz
P1dB 27dBm
Gain 24dB
Noise Figure 5dB
RF Type General Purpose
Voltage - Supply 4V ~ 6V
Current - Supply 350mA
Test Frequency 24GHz ~ 29.5GHz
Mounting Type Surface Mount
Package / Case 24-CLCC Exposed Pad
Supplier Device Package 24-CLCC (3.9x3.9)
Ultra Librarian 3D Model Ultra Librarian HMC863ALC4 CAD Model
