Product Overview: HMC732LC4BTR by Analog Devices Inc.

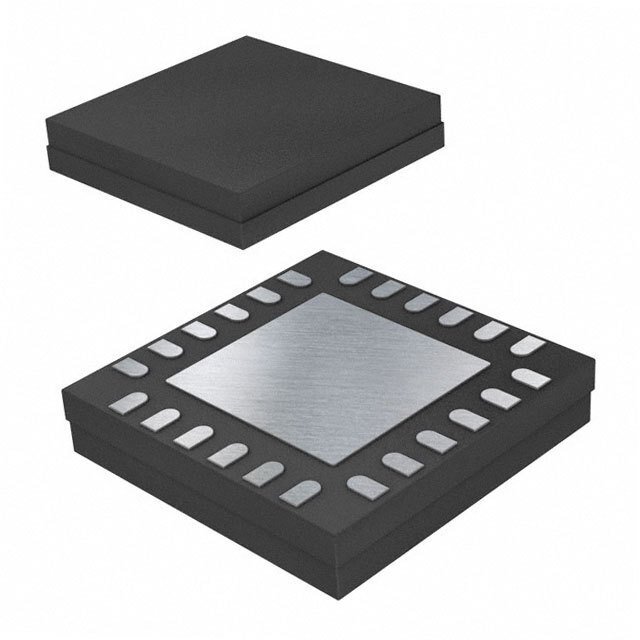

The HMC732LC4BTR is a high-performance, wideband, fully integrated voltage-controlled oscillator (VCO) designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This VCO is part of the Hittite Microwave product line and is housed in a compact 4x4 mm QFN leadless package, which makes it an ideal choice for space-constrained applications.

With a frequency range that spans from 5 GHz to 10 GHz, the HMC732LC4BTR is capable of addressing a wide array of applications including point-to-point and point-to-multipoint radios, military and space, test equipment, and radar systems. Its wide frequency range also makes it suitable for use in a variety of communication systems, including those operating in the X and Ku bands.

The device features a phase noise performance of -106 dBc/Hz at 100 kHz offset, which ensures a clean spectral output and minimizes phase noise-related issues in sensitive applications. This high level of performance is achieved while maintaining a low power consumption, making the HMC732LC4BTR an energy-efficient choice for battery-powered and energy-conscious designs.

The HMC732LC4BTR also includes an integrated resonator, negative resistance device, varactor diode, and buffer amplifier. This level of integration reduces the need for external components, simplifies the design process, and helps to speed up product development cycles. Additionally, the device offers a tuning voltage range of 0 to 20V, providing designers with flexibility in frequency control and allowing for precise tuning to meet specific system requirements.

With its robust construction and high reliability, the HMC732LC4BTR is well-suited for operation in harsh environments, which is often a requirement for military and aerospace applications. Its superior performance, combined with Analog Devices Inc.'s reputation for quality, makes this VCO a top choice for designers looking for a reliable and high-performing frequency source.

For further information on the HMC732LC4BTR, including detailed specifications, application notes, and support resources, designers and engineers are encouraged to visit the Analog Devices Inc. website or contact their local sales office.
