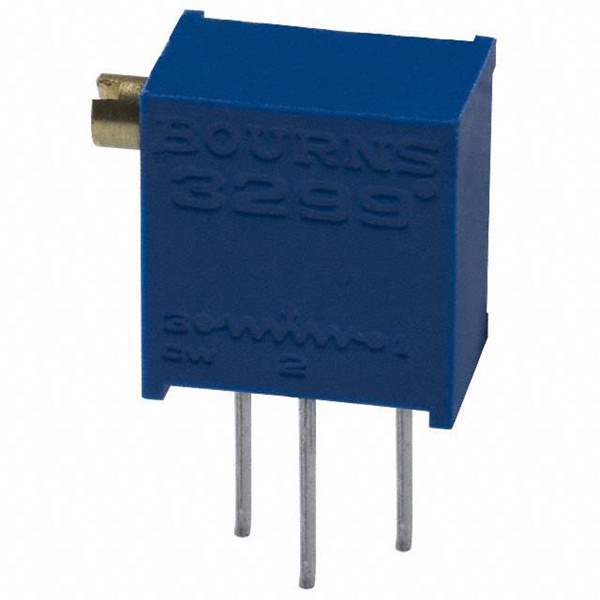

3299Z-1-504LF Real Image
Same model may have multiple batches, images only for reference.

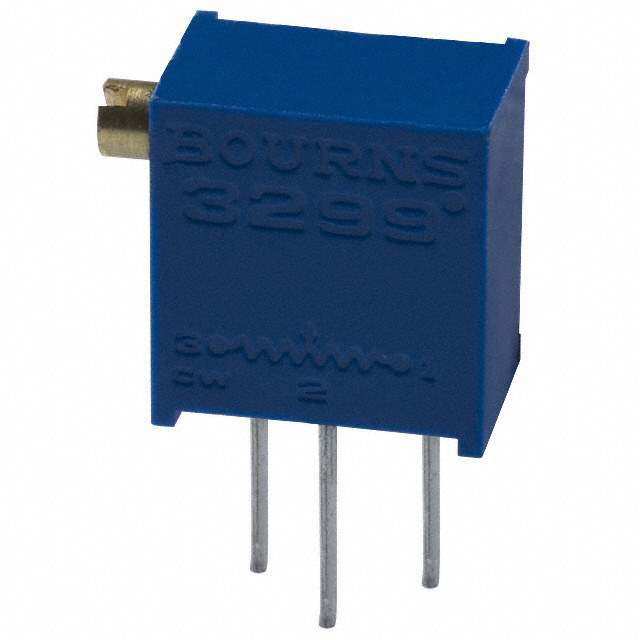

3299Z-1-504LF

Part No 3299Z-1-504LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description 3/8 Square Trimming Potentiometer | TRIMMER 500KOHM 0.5W PC PIN SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube
Resistance 500 kOhms
Power (W) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Parts Dimension Rectangular - 0.395" x 0.240" Face x 0.395" H (10.03mm x 6.10mm x 10.03mm)
Family Part Number 3299Z
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1128198-3299Z-1-504LF
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3299Z-1-504LF CAD Model

Description

The Bourns Inc.'s 3299Z-1-504LF is a potentiometer with a resistance of 500 kOhms.

  • Manufacturer: Bourns Inc.
  • Resistance: 500 kOhms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Adjustment Type: Side adjustment
  • Turns: 25
  • Packaging: Tube
  • Termination Style: PC pins
  • Mounting Style: Through-hole
  • Resistive Material: Cermet
  • Power (W): 0.5W, 1/2W
  • Parts Dimension: Rectangular - 0.395" x 0.240" Face x 0.395" H (10.03mm x 6.10mm x 10.03mm)
  • Manufacturer Homepage: www.bourns.com
  • Supply and Demand Status: Limited
