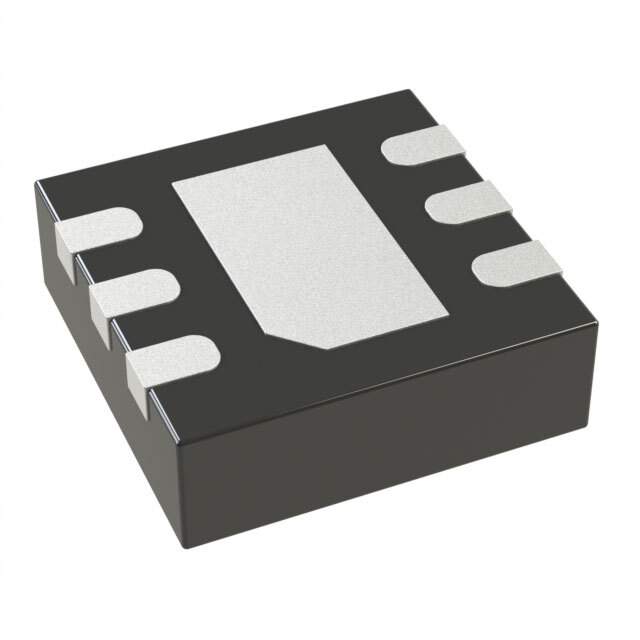

The HMC667LP2E, manufactured by Analog Devices Inc., is a high-performance, wideband, GaAs PHEMT MMIC Low Noise Amplifier (LNA) designed to offer exceptional signal amplification solutions for a variety of RF and microwave applications. Analog Devices, known for its innovative and reliable products, ensures that this LNA provides a perfect blend of low noise figure and high gain, making it an ideal choice for sensitive receiver applications.

Key Features

• Frequency Range: The HMC667LP2E operates over a wide frequency range, making it versatile for use in diverse applications, including point-to-point radios, VSAT, military & space, and test instrumentation.
• High Gain: With a high gain of 14 dB, the amplifier can boost weak signals without significant distortion, ensuring clear and reliable communication.
• Low Noise Figure: The device boasts an impressive low noise figure of 2.5 dB, which is essential for maintaining signal integrity in noise-sensitive environments.
• Output Power: It provides a high output power (P1dB) of 19 dBm, which is beneficial for driving subsequent stages in a signal chain without requiring an additional amplifier.
• Power Supply: The LNA operates on a single-dc supply voltage, simplifying the power supply design for system integration.

Product Specifications

Applications

The HMC667LP2E LNA is suitable for a wide range of applications. Its ability to operate over a broad frequency range, combined with its high gain and low noise performance, makes it an excellent choice for:

• Point-to-Point and Point-to-Multipoint Radios
• VSAT and Satellite Communications
• Military Radar and Electronic Warfare Systems
• Test Equipment and Sensors

Analog Devices Inc. provides comprehensive technical support and documentation, ensuring that integrating the HMC667LP2E into your design is as seamless as possible. With its robust performance and reliability, this LNA stands out as a superior solution for enhancing signal quality in demanding RF and microwave systems.
