Product Overview: HMC649LP6E - Analog Devices Inc.

The HMC649LP6E from Analog Devices Inc. is a high-performance, RF (Radio Frequency) amplifier that operates within the frequency range of DC to 14 GHz. This versatile product is designed for a wide array of applications, including but not limited to, telecommunications, test equipment, and military systems. With its exceptional linearity and low noise figure, the HMC649LP6E provides a robust solution for systems requiring high dynamic range and signal clarity.

Key Features:

• Frequency Range: DC to 14 GHz, enabling use in a broad spectrum of RF and microwave applications.
• Gain: Delivers a high gain of 17 dB, ensuring signal amplification without significant loss of quality.
• Output Power: Offers a high output power of +29 dBm, making it suitable for high-power requirements.
• Supply Voltage: Operates on a supply voltage of +5V, providing ease of integration into various circuit designs.

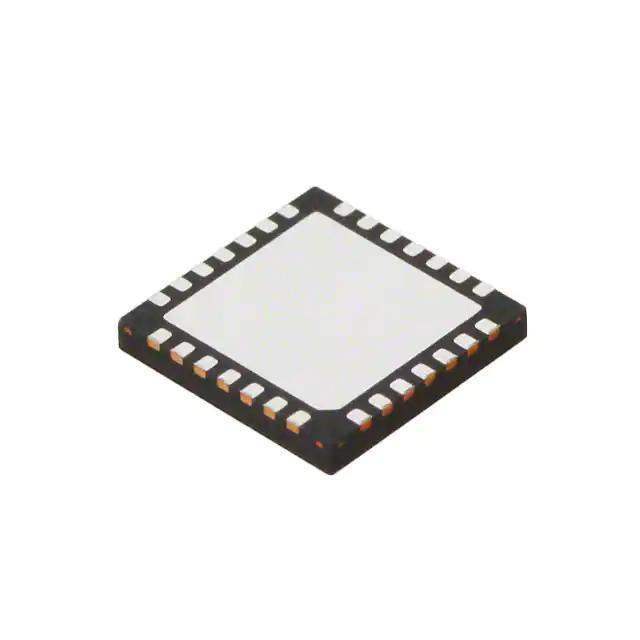

• Package: Comes in a compact 6x6mm QFN package, which allows for efficient use of board space without compromising performance.

Applications:

• Point-to-Point and Point-to-Multipoint Radios
• Military Radar and ECM Systems
• Test Instrumentation
• Satellite Communications
• Fiber Optic Applications

The HMC649LP6E is engineered to meet the stringent requirements of high-frequency RF systems. Its ability to maintain signal integrity across a wide frequency range makes it an ideal choice for designers looking to enhance system performance. The product's robust construction and high-quality manufacturing standards reflect Analog Devices Inc.'s commitment to providing industry-leading RF solutions.

Whether you're designing a state-of-the-art communication system or upgrading existing equipment, the HMC649LP6E offers the reliability and performance you can trust. With its combination of high gain, wide bandwidth, and efficient power usage, this amplifier is a key component for any high-frequency signal chain.
