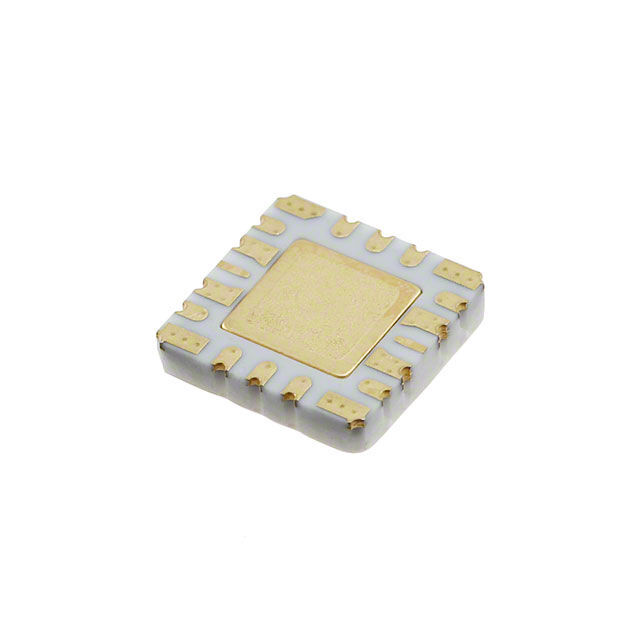

Same model may have multiple batches, images only for reference.
HMC5805ALS6TR Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HMC5805ALS6TR

Part No HMC5805ALS6TR
Manufacturer Analog Devices Inc.
Catalog RF Amplifiers
Description IC RF AMP VSAT 0HZ-40GHZ 16CLCC
Datasheet
HMC5805ALS6TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and WirelessRF Amplifiers
Manufacturer Analog Devices Inc.
Part Status Active
Frequency 0Hz ~ 40GHz
P1dB 22dBm
Gain 13.5dB
Noise Figure 7dB
RF Type VSAT
Voltage - Supply 10V
Current - Supply 175mA
Mounting Type Surface Mount
Package / Case 16-CLCC Exposed Pad
Supplier Device Package 16-CLCC-HS (6x6)
Base Product Number HMC5805
Ultra Librarian 3D Model Ultra Librarian HMC5805ALS6TR CAD Model
