Product Overview: HMC578LC3B from Analog Devices Inc.

The HMC578LC3B is a high-performance, wideband, double-balanced mixer from Analog Devices Inc., designed to meet the needs of RF and IF applications. This versatile component is a key building block in communication systems, facilitating frequency conversion which is an essential function in many wireless systems.

Key Features

• Wide Frequency Range: The HMC578LC3B operates over a broad frequency range, with an RF and LO frequency from 6 GHz to 26 GHz and an IF frequency from DC to 8 GHz, making it highly adaptable to various applications.
• High Isolation: It boasts excellent isolation performance, with typical isolation of 30 dB between the local oscillator (LO) and the radio frequency (RF) ports, reducing signal leakage and enhancing overall system performance.
• Conversion Gain: The mixer provides a conversion gain of 11 dB, which aids in maintaining signal integrity through the mixing process.

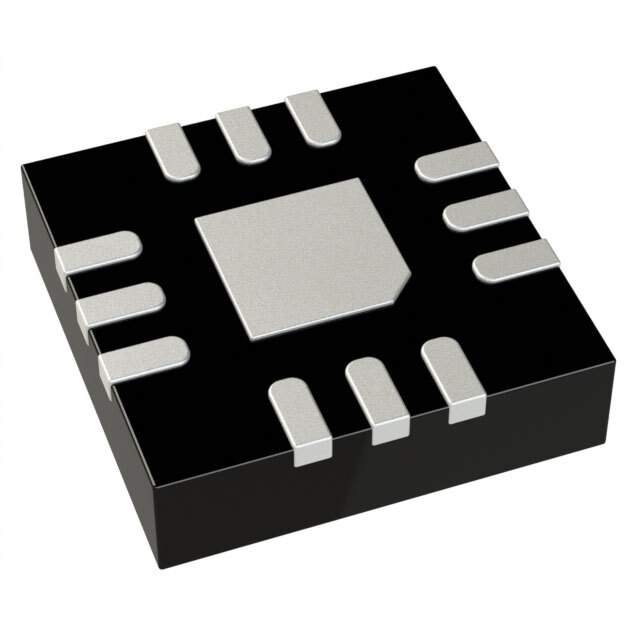

• Compact Package: Encased in a compact 3x3 mm SMT package, the HMC578LC3B is designed for space-constrained applications without compromising on performance.

Applications

The HMC578LC3B is ideal for a variety of applications, including:

• Point-to-point and point-to-multipoint radios
• Military radar and ECM systems
• Space communication systems
• Test equipment and sensors

Performance and Quality

Analog Devices Inc. is known for its commitment to high-quality components, and the HMC578LC3B is no exception. It delivers reliable performance in a range of environmental conditions, making it suitable for both commercial and military applications. The device is fabricated using a gallium arsenide (GaAs) process, which ensures robustness and longevity.

Conclusion

The HMC578LC3B from Analog Devices Inc. represents a blend of performance, flexibility, and quality. Its wide frequency range, high isolation, and conversion gain make it a powerful choice for designers looking to optimize their RF and IF systems. The compact form factor further ensures that it can be integrated into systems where space is at a premium, without sacrificing functionality.
