Product Overview: HMC554ALC3B

The HMC554ALC3B, designed and manufactured by Analog Devices Inc., is a high-performance, gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC) double-balanced mixer. This product is well-suited for RF and microwave applications that demand high linearity, a broad frequency range, and a compact form factor.

Key Features and Benefits

• Frequency Range: The HMC554ALC3B operates over a wide frequency range, making it versatile for various applications, including satellite communications, test equipment, and military systems.
• High Isolation: It offers excellent LO to RF, LO to IF, and RF to IF isolation, minimizing signal leakage and enhancing overall system performance.
• High Linearity: This mixer provides outstanding linearity, which is essential for maintaining signal integrity in complex modulation schemes.
• Passive Design: As a passive device, it does not require DC bias, simplifying circuit design and reducing power consumption.

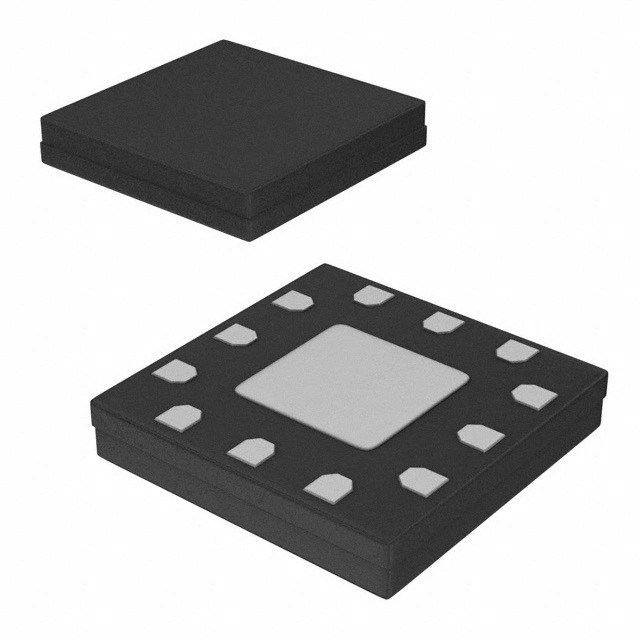

• Compact Package: Encased in a compact 3x3 mm surface-mount leadless package (LC3B), the HMC554ALC3B is ideal for space-constrained applications.

Applications

• Point-to-point and point-to-multipoint radios
• Military radar, ECM, and C3I systems
• Space and satellite communication systems
• Test equipment and sensors

Technical Specifications

The HMC554ALC3B mixer operates within the RF/IF frequency range of 6 GHz to 26 GHz and LO frequency range of 6 GHz to 26 GHz. It boasts a wide IF frequency range from DC to 5 GHz. The mixer's conversion loss is typically 9 dB, and it can handle an input power of up to +13 dBm.

In conclusion, the HMC554ALC3B from Analog Devices Inc. is a highly capable component for RF and microwave signal mixing applications. Its broad frequency range, high linearity, and compact size make it an excellent choice for designers looking to optimize their systems for performance and space.
