Product Overview: HMC536MS8GTR by Analog Devices Inc.

The HMC536MS8GTR is a high-performance, GaAs MMIC SPDT (Single Pole Double Throw) switch, proudly brought to you by Analog Devices Inc., a leader in high-performance analog technology. This switch operates within the frequency range of DC to 6 GHz, making it a versatile component for a wide array of RF applications.

Key Features

• Frequency Range: The HMC536MS8GTR is designed to handle DC to 6 GHz, ensuring broad application coverage from low frequencies up to C-band.
• High Isolation: With isolation performance of up to 45 dB at 1 GHz, this switch provides excellent signal integrity by minimizing crosstalk between channels.
• Low Insertion Loss: The insertion loss is as low as 1.0 dB at 1 GHz, which helps in maintaining signal strength and quality throughout the switching process.
• Non-Reflective Design: Its non-reflective nature makes it ideal for applications where signal reflection can be an issue, such as in test and measurement setups.
• Power Handling: This component is capable of handling up to +27 dBm of input power, ensuring reliable performance under various operating conditions.

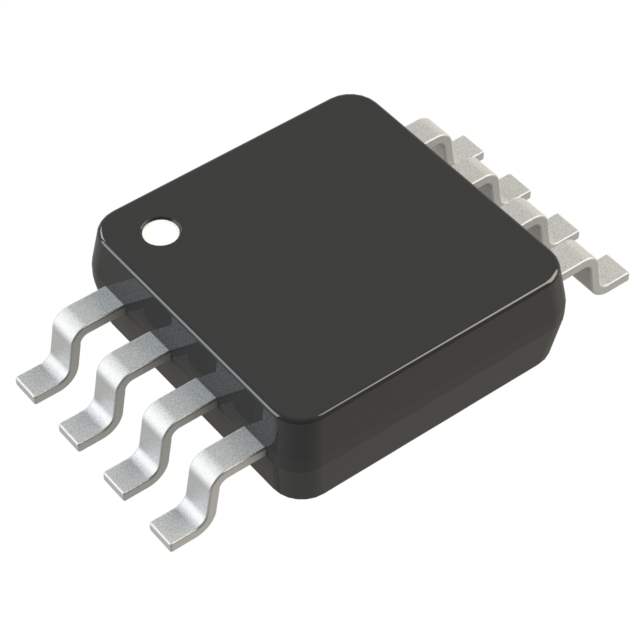

• Package: The HMC536MS8GTR comes in a compact MSOP8G package, which is suitable for space-constrained designs without compromising on performance.

Applications

The versatility and high performance of the HMC536MS8GTR make it an excellent choice for a variety of applications, including:

• Wireless infrastructure (GSM, PCS, DCS, 3G, 4G)
• RFID systems
• Test equipment and sensors
• Satellite communications systems
• Fiber optic applications

Quality and Reliability

Analog Devices Inc. ensures that the HMC536MS8GTR is manufactured to the highest quality standards, providing reliable and consistent performance for critical RF applications. The device's robust design and build quality make it a preferred choice for professionals seeking dependable RF switching solutions.

For detailed specifications, application notes, and additional resources, interested customers can access the product datasheet or contact Analog Devices Inc. directly. The HMC536MS8GTR is not just a component; it's a solution that meets the demanding needs of the high-frequency RF market.
