Analog Devices Inc. HMC524LC3BTR RF Mixer

The HMC524LC3BTR is a high-performance RF (Radio Frequency) mixer product from Analog Devices Inc., a renowned leader in the design and manufacturing of analog, mixed-signal, and DSP integrated circuits. This device is part of the company's extensive Hittite microwave product line, which is known for delivering exceptional quality and performance in RF, microwave, and millimeter-wave applications.

Designed to operate within the 6 GHz to 16 GHz frequency range, the HMC524LC3BTR is a double-balanced mixer that offers a wide bandwidth and a high level of linearity, making it an ideal choice for use in a variety of applications, including point-to-point and point-to-multipoint radios, military and space, as well as test equipment and sensors.

The mixer is fabricated using a GaAs (Gallium Arsenide) MESFET (Metal-Semiconductor Field Effect Transistor) process, which provides it with excellent RF performance. It features a wide IF (Intermediate Frequency) bandwidth from DC to 3.5 GHz, which allows for a broad range of frequencies to be mixed and manipulated. This flexibility is crucial for systems that require dynamic frequency conversion and signal processing.

The HMC524LC3C3BTR also boasts a high isolation between the RF and IF ports, which minimizes crosstalk and improves signal integrity. This is particularly important in complex RF systems where multiple signals are processed simultaneously. The device's conversion loss is also optimized to ensure efficient signal translation from one frequency to another, without significant power loss.

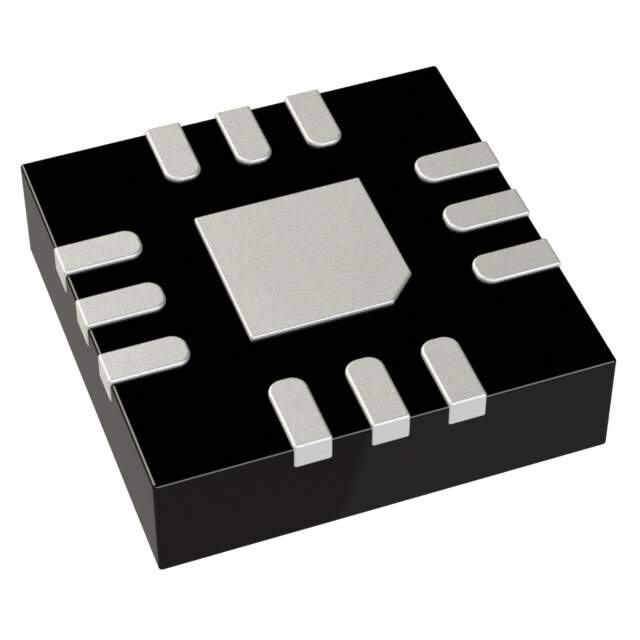

Available in a compact 3x3 mm ceramic QFN package, the HMC524LC3BTR is designed for easy integration into a wide array of RF circuit designs. Its surface-mount form factor makes it suitable for high-volume production and automated assembly processes, while its robust construction ensures reliability and performance even under demanding conditions.

Overall, the HMC524LC3BTR from Analog Devices Inc. represents a blend of advanced technology, superior performance, and practical design, making it a valuable component for engineers and designers working on cutting-edge RF and microwave systems.
