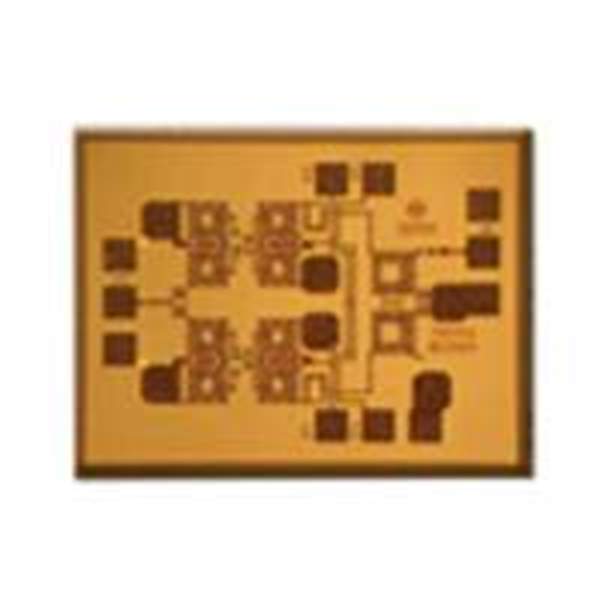

The Analog Devices HMC523 is a high-performance gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC) I/Q downconverter, designed to offer exceptional RF performance for a wide range of applications. This downconverter operates within the 6 to 10 GHz frequency range, making it an ideal choice for electronic warfare, radar, test equipment, and satellite communication systems.

The HMC523 integrates a balanced mixer, LO amplifier, and an RF amplifier, which together facilitate a high level of functionality within a compact footprint. The device boasts an impressive conversion gain of 13 dB, providing robust signal processing capabilities. Additionally, the HMC523 features a low noise figure of 9 dB, ensuring that signal integrity is maintained throughout the downconversion process.

The I/Q mixer's architecture enables the HMC523 to support complex signal processing, which is critical for advanced communication systems that require demodulation and digital signal processing. The balanced design of the mixer also helps to minimize LO leakage to the RF port, thus reducing potential interference and preserving signal quality.

Built with versatility in mind, the HMC523 can be used with a wide range of local oscillator (LO) frequencies, providing designers with flexibility in system design. The device also includes an integrated LO buffer amplifier, which eliminates the need for an external driver amplifier, thereby simplifying the design and reducing overall system cost.

The HMC523 is available in a compact 4x4 mm QFN package, which is ideal for space-constrained applications. This package is also RoHS compliant, meeting the environmental and regulatory standards required by many markets today.

With its high performance, integration, and compact size, the Analog Devices HMC523 GaAs MMIC I/Q downconverter stands out as a superior solution for high-frequency signal processing applications, where precision and reliability are paramount.
