Product Overview: HMC455LP3ETR by Analog Devices Inc.

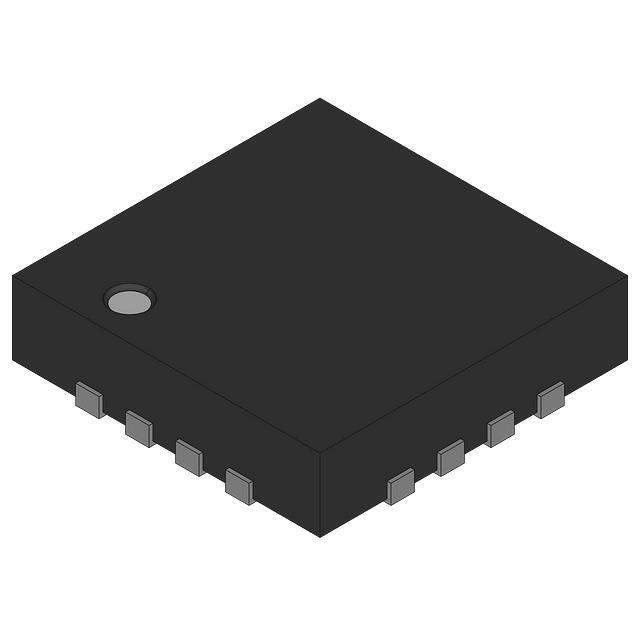

The HMC455LP3ETR is a high-performance, GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO from Analog Devices Inc., designed to cater to the demanding needs of RF and microwave communication systems. This VCO (Voltage-Controlled Oscillator) is packaged in a low-profile, surface-mount leadless QFN 3x3 mm package, making it suitable for space-constrained applications.

Key Features

• Frequency Range: The HMC455LP3ETR operates over a wide frequency range, providing designers with the flexibility to use it in various applications.
• Output Power: It delivers a consistent output power across its operating frequency range, ensuring reliable performance in signal generation.
• Phase Noise Performance: Boasting excellent phase noise characteristics, this VCO ensures low jitter and high signal integrity, which is crucial for high-speed digital communication systems.
• Supply Voltage: The device operates on a single supply voltage, simplifying power supply design and board layout.
• Package: The compact 3x3 mm QFN package is RoHS compliant and allows for efficient use of PCB space.

Applications

The HMC455LP3ETR is ideal for use in:

• Fixed Wireless Access (FWA)
• Wireless Local Loop (WLL)
• Satellite Communications
• Test Equipment
• Private Mobile Radios

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the HMC455LP3ETR is no exception. This product is manufactured using a robust silicon process, ensuring consistent performance and durability over its operational lifespan.

Environmental Compliance

The HMC455LP3ETR complies with environmental standards, including RoHS, which restricts the use of certain hazardous substances in electrical and electronic equipment. This commitment to environmental stewardship makes it a suitable choice for eco-conscious designs.
