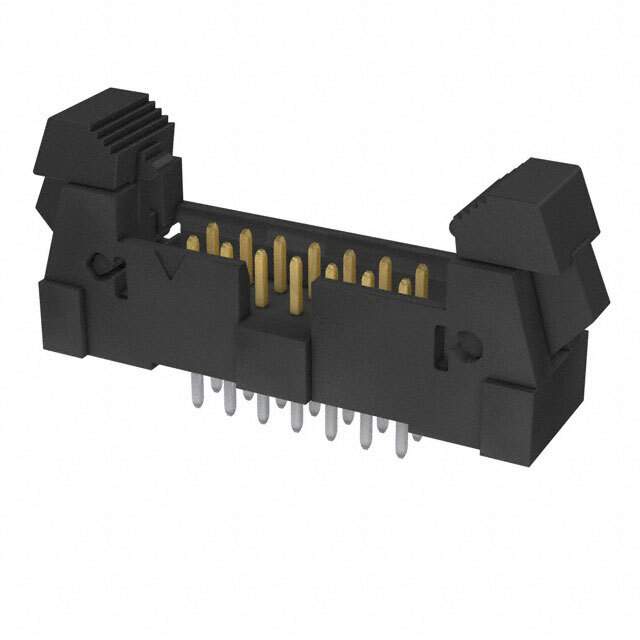

Same model may have multiple batches, images only for reference.

EHT-107-01-S-D-SR

Name: EHT-107-01-S-D-SR
Brand: Samtec Inc.
SKU: 1337100
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EHT-107-01-S-D-SR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2MM / Connector Header Through Hole 14 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	EHT
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	0.114" (2.90mm)
Insulation Height	0.370" (9.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot, Strain Relief
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	EHT-107
Standard Package	500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1337100-EHT-107-01-S-D-SR
Ultra Librarian 3D Model	Ultra Librarian EHT-107-01-S-D-SR CAD Model

Alternative Products

Description

The Samtec EHT-107-01-S-D-SR is a board-to-cable/wire connector with a pitch of 0.079" (2.00mm).

Manufacturer: Samtec
Style: Board-to-Cable/Wire
Pitch: 0.079" (2.00mm)
Number of Positions: 14
Application: Telecommunications, Data Storage, and Industrial Equipment
Connector Type: Header
Contact Type: Male Pin
Mounting Type: Through Hole
Height: 0.370" (9.40mm)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Temperature Range: -55°C to 125°C
Lifecycle Status: Active
