Product Overview: HMC348LP3E

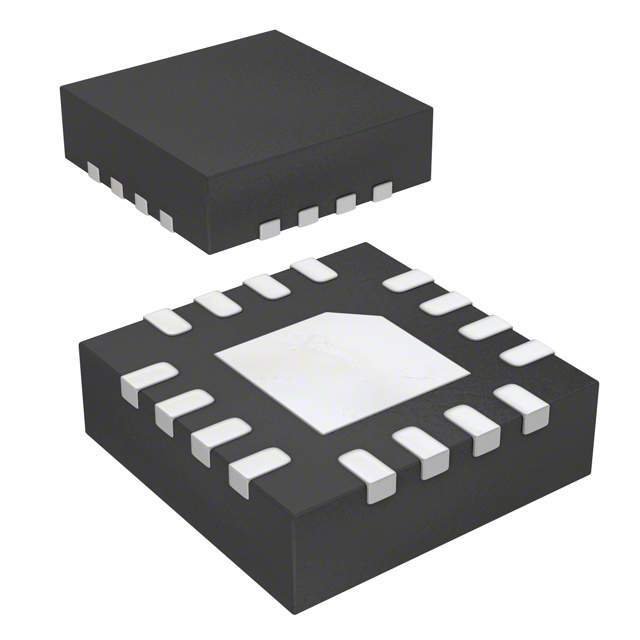

Analog Devices Inc. presents the HMC348LP3E, a high-performance, passive double-balanced mixer that offers a versatile solution for a wide range of RF and IF applications. This compact device is housed in a 3x3 mm QFN package, designed to deliver exceptional performance while maintaining a small footprint, making it ideal for space-constrained applications.

Key Features

• Frequency Range: The HMC348LP3E operates over a broad frequency range, with the RF and LO frequency from 6 GHz to 26 GHz, and the IF frequency from DC to 8 GHz, providing flexibility for various design requirements.
• Conversion Loss: It boasts a low conversion loss, typically 9 dB, which ensures efficient signal conversion and minimal signal degradation, leading to improved overall system performance.
• LO/RF Isolation: With excellent LO to RF isolation of 37 dB, the HMC348LP3E minimizes potential leakage of the local oscillator signal into the RF path, which is critical for maintaining signal integrity.
• Input IP3: The device features a high input third-order intercept point (IP3) of 22 dBm, allowing it to handle higher signal levels without significant distortion, which is essential for maintaining signal clarity in demanding applications.

Applications

The HMC348LP3E is suitable for a variety of applications, including:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space
• Wireless infrastructure

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the HMC348LP3E is no exception. It is manufactured to meet high standards of performance and reliability, ensuring that it meets the rigorous demands of both commercial and military applications. The device's robust design also ensures long-term stability and operation even under challenging environmental conditions.

Overall, the HMC348LP3E from Analog Devices Inc. stands out as a superior choice for designers looking for a high-performance mixer that combines wide frequency range, low conversion loss, and excellent isolation, all in a compact package.
