The HMC346G8TR from Analog Devices Inc. is a high-performance, passive double-balanced mixer designed to cater to a wide range of RF and microwave applications. This compact and highly integrated device is an ideal solution for designers looking to achieve excellent linearity and isolation in their frequency conversion applications.

Key Features

• Wide Frequency Range: The HMC346G8TR operates over a broad frequency range, making it suitable for various applications, including satellite communications, test equipment, and broadband telecom services.
• High Isolation: With its double-balanced design, the mixer provides superior isolation between its ports, reducing signal leakage and enhancing overall system performance.
• Exceptional Linearity: The device delivers high linearity, which is critical for maintaining signal integrity in complex modulation schemes.

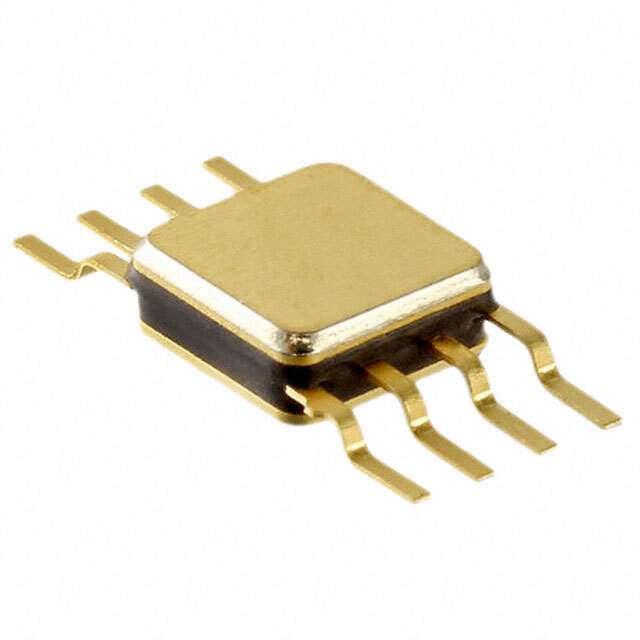

• Surface-Mount Package: Packaged in a compact 3x3 mm surface-mount package, the HMC346G8TR is designed for easy integration into space-constrained applications.

Applications

The versatility of the HMC346G8TR allows it to be used in various RF and IF systems. Its performance characteristics make it suitable for:

• Point-to-point and point-to-multipoint radios
• Military and space applications
• Test instrumentation
• Wireless infrastructure

Technical Specifications

In summary, the HMC346G8TR from Analog Devices Inc. is a robust and reliable mixer component that provides designers with the performance needed for demanding RF and microwave systems. Its combination of wide frequency range, high isolation, and excellent linearity makes it a versatile choice for a multitude of applications.
