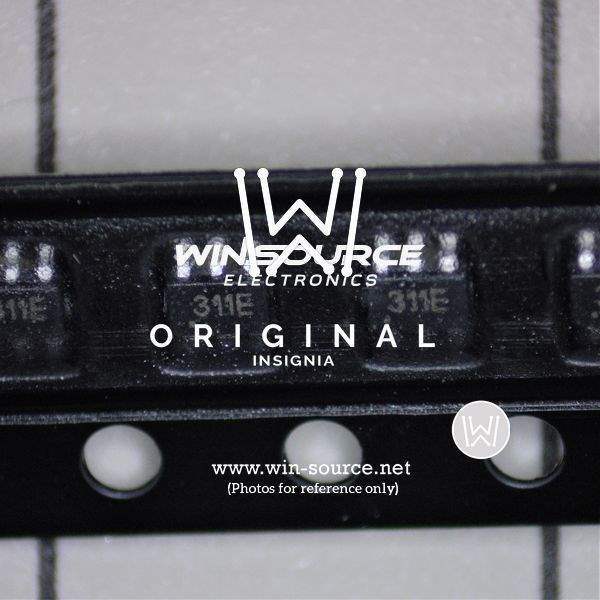

Product Overview: HMC311SC70ETR by Analog Devices Inc.

The HMC311SC70ETR is a high-performance, gallium arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) MMIC amplifier designed and manufactured by Analog Devices Inc. This RF amplifier is engineered to deliver exceptional performance for a wide range of applications in the RF and microwave domain. It is housed in a compact SC70 package, making it ideal for space-constrained designs.

Key Features

• Frequency Range: The HMC311SC70ETR operates over a broad frequency range, making it versatile for various applications, including cellular, 3G, 4G, LTE, and other wireless communication systems.
• Gain: It offers a high gain, which is essential for signal amplification in RF circuits, ensuring that signals are transmitted with minimal loss.
• Output Power: The device provides a robust output power level, contributing to its ability to drive signals through long transmission lines and components with higher insertion losses.
• Power Added Efficiency (PAE): With its high PAE, the HMC311SC70ETR operates efficiently, which is critical for battery-powered devices and systems where power conservation is a priority.
• Single Power Supply: The amplifier can be powered by a single DC supply voltage, simplifying power supply design and reducing the overall system complexity.

Applications

The HMC311SC70ETR is suitable for a variety of RF applications, including:

• Wireless infrastructure
• Test instrumentation
• Satellite communications
• Fiber optics
• Military and space

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the HMC311SC70ETR is no exception. It is manufactured to the highest standards to ensure consistent performance and durability across a range of environmental conditions. Whether used in commercial or defense-related applications, customers can trust the HMC311SC70ETR to perform reliably over the long term.

In summary, the HMC311SC70ETR from Analog Devices Inc. is an exceptional choice for design engineers looking for a high-quality RF amplifier with a broad frequency range, high gain, and efficient power usage, all packed into a small, easy-to-integrate package.
