Product Overview: HMC276QS24E by Analog Devices Inc.

The HMC276QS24E is a high-performance, non-reflective Single Pole Four Throw (SP4T) switch designed by Analog Devices Inc., a leading company in the field of high-performance analog technology. This product is a testament to Analog Devices' commitment to providing advanced solutions for RF and microwave signal routing applications.

Key Features:

• Frequency Range: The HMC276QS24E operates over a broad frequency range from DC to 3.5 GHz, making it versatile for a wide array of applications including cellular infrastructure, wireless data, and satellite communications.
• Insertion Loss: It boasts a low insertion loss, which ensures minimal signal attenuation when the signal is routed through the switch, thereby maintaining signal integrity.
• High Isolation: The device provides high isolation between ports, which is critical in applications where leakage between signal paths must be minimized to prevent signal interference.
• Non-reflective Design: The non-reflective nature of the switch is ideal for applications where signal reflections can degrade overall system performance.
• Power Handling: It offers excellent power handling capabilities, ensuring reliable performance even under high-power conditions.
• Control Voltage: The switch operates with a single positive control voltage, simplifying the power supply requirements and making it easier to integrate into existing designs.

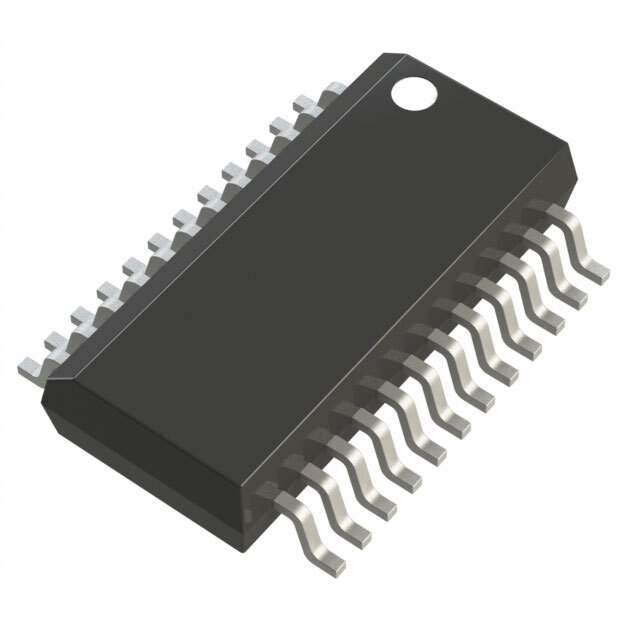

• Package: Housed in a compact 24-lead QSOP surface-mount package, the HMC276QS24E is designed for space-constrained applications while providing robust mechanical and thermal stability.

Applications:

The HMC276QS24E is suitable for a variety of RF and microwave applications, including but not limited to:

• Test equipment and sensors
• Wireless infrastructure
• MMIC (Monolithic Microwave Integrated Circuit) based transceivers
• RFID (Radio Frequency Identification) systems
• Satellite communications systems

With its combination of performance, quality, and reliability, the HMC276QS24E from Analog Devices Inc. is an excellent choice for designers looking to optimize their RF and microwave signal routing solutions.
