Product Overview: HMC241ALP3E by Analog Devices Inc.

The HMC241ALP3E is a high-performance, non-reflective Single Pole Four Throw (SP4T) MMIC switch developed by Analog Devices Inc. This advanced switch is designed to operate within the frequency range of DC to 3.5 GHz, making it an ideal component for a wide variety of RF applications including wireless infrastructure, test equipment, and military systems.

Constructed using a silicon on insulator (SOI) process, the HMC241ALP3E ensures excellent RF performance with a low insertion loss and high isolation between channels. This results in minimal signal degradation and improved signal integrity, a critical factor for maintaining the quality of communication in RF systems.

Key Features:

• Frequency Range: The device operates seamlessly over a DC to 3.5 GHz frequency range, accommodating various RF and microwave applications.
• Insertion Loss: With an insertion loss of typically 2 dB at 2.5 GHz, the HMC241ALP3E maintains a strong signal throughput, which is essential for maintaining system performance.
• Isolation: The switch offers high isolation, typically 40 dB at 2.5 GHz, between each of its output ports, ensuring minimal crosstalk and interference among multiple signal paths.
• Switching Speed: Fast switching speed is a hallmark of this device, with a typical switching time of 6 ns, facilitating rapid signal routing and reducing latency in communication systems.
• Control Voltage: It requires a dual control voltage of 0/-5V, which allows for simplified integration into a variety of circuit designs.

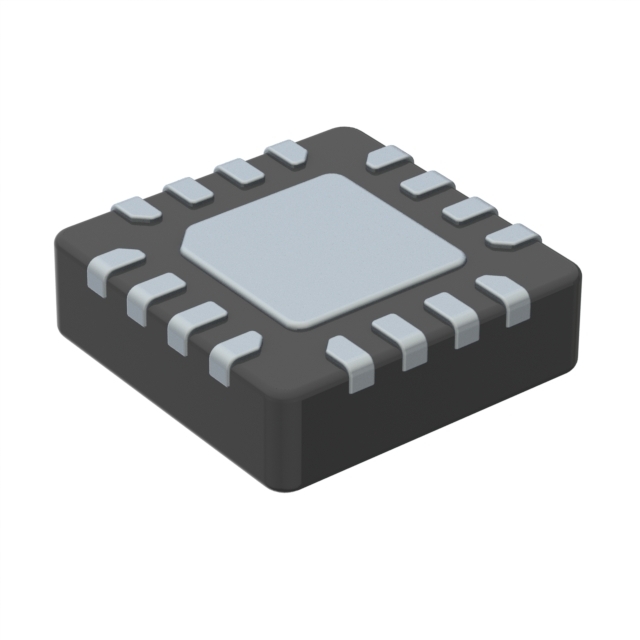

• Package: The switch comes in a compact 3x3 mm surface-mount leadless package (LP3E), which is suitable for space-constrained applications and offers a robust solution for high-density circuit designs.

With its robust design and superior electrical performance, the HMC241ALP3E from Analog Devices Inc. represents a highly reliable switching solution for designers looking to enhance their RF and microwave systems. The combination of its wide operating frequency range, low insertion loss, high isolation, and fast switching capabilities make it a versatile and indispensable component for modern electronic applications.
