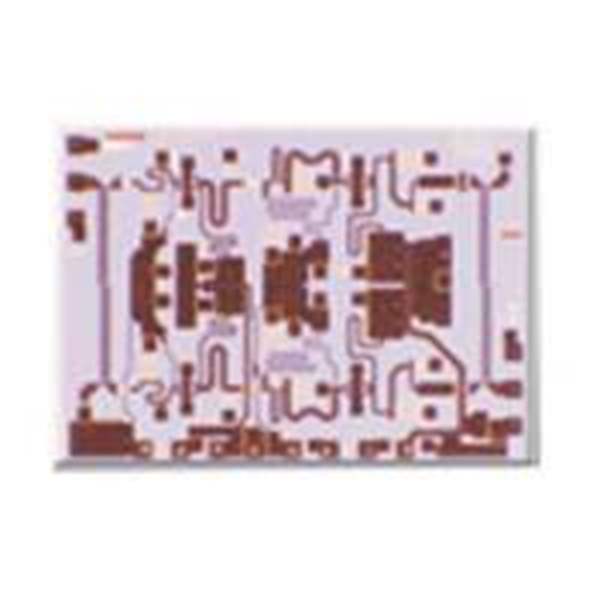

The HMC-APH596 is a two-stage GaAs HEMT MMIC medium power amplifier which operates between 16 and 33 GHz. The HMC-APH596 provides 17 dB of gain and an output power of +24 dBm at 1 dB compression from a +5 V supply voltage. All bond pads and the backside are Ti/Au metallized, and the amplifier device is fully passivated for reliable operation.
The HMC-APH596 GaAs HEMT MMIC medium power amplifier is compatible with conventional die attach methods, as well as thermocompression and thermosonic wire bonding, making it ideal for MCM and hybrid microcircuit applications. All data shown herein is measured with the chip in a 50 Ohm environment and contacted with RF probes.
