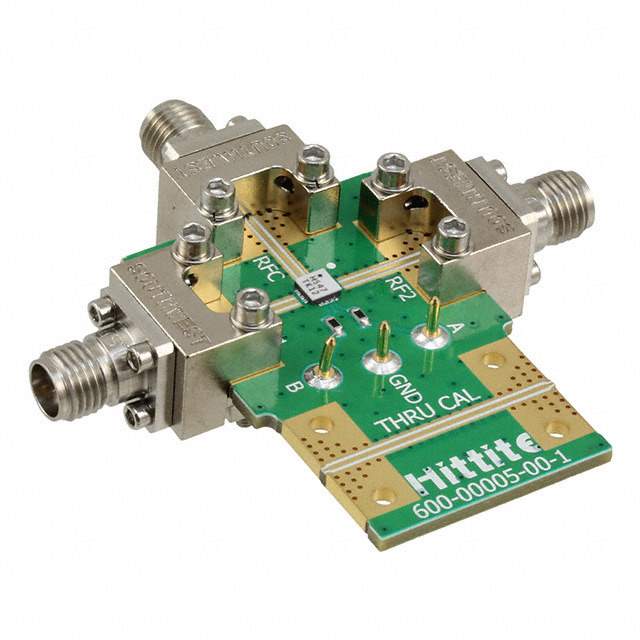

Product Overview: EVAL01-HMC547LC3

The EVAL01-HMC547LC3 is a high-performance evaluation board designed by Analog Devices Inc., which features the HMC547LC3, a broadband non-reflective GaAs MESFET SPDT (Single Pole Double Throw) switch. This product is tailored for engineers and designers who require a reliable switch for RF and microwave applications.

Key Features

• Frequency Range: The HMC547LC3 operates over a wide frequency range from DC to 40 GHz, offering exceptional versatility for a variety of applications including test equipment, electronic warfare, and communication systems.
• High Isolation: With high isolation performance, the switch minimizes signal leakage between the ports, which is crucial for maintaining signal integrity in complex RF systems.
• Low Insertion Loss: The low insertion loss characteristic ensures minimal signal attenuation when the switch is in the ON state, providing efficient signal transmission.
• Non-Reflective Design: The non-reflective nature of the switch prevents signal reflections that can cause impedance mismatches and distortions, enhancing the overall system performance.
• Fast Switching Speed: The HMC547LC3 boasts fast switching speed, which is essential for applications that require rapid switching between channels or modes.

Board Features

• User-Friendly Interface: The evaluation board comes with an easy-to-use interface, allowing for straightforward testing and integration into existing setups.
• Durable Construction: Built with high-quality materials, the EVAL01-HMC547LC3 is designed for durability and long-term use.
• Comprehensive Documentation: Analog Devices Inc. provides detailed documentation, including schematics, layout files, and application notes to assist with the evaluation process.

Applications

The EVAL01-HMC547LC3 is ideal for a wide range of applications, such as:

• RF/Microwave Test Equipment
• Electronic Warfare Systems
• Communication Systems
• Satellite Communications
• Fiber Optic Applications

With its robust design and superior performance, the EVAL01-HMC547LC3 from Analog Devices Inc. is an excellent choice for professionals seeking a reliable and efficient solution for their RF switching needs.
