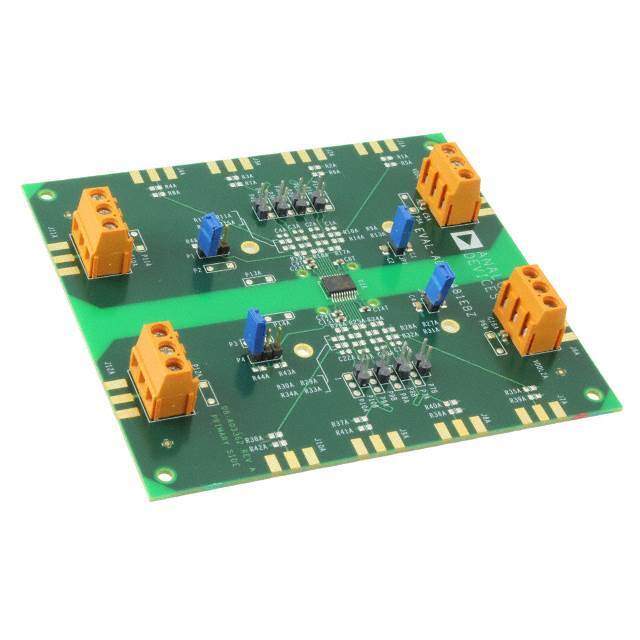

The EVAL-ADUM3481EBZ is a high-performance evaluation board designed by Analog Devices Inc. to facilitate the testing and development of the ADuM3481, which is a quad-channel digital isolator with an integrated transformer driver. This board is an essential tool for engineers and designers who require a reliable and efficient solution for isolating data channels and power in demanding industrial, healthcare, and automotive applications.

Key Features:

• Quad-Channel Isolation: The ADuM3481 provides four independent isolation channels, supporting robust data transfer and isolation in multi-channel applications.
• Integrated DC-DC Converter: With an integrated isoPower® DC-DC converter, the EVAL-ADUM3481EBZ offers a complete solution for both data isolation and power transfer across the isolation barrier, simplifying design and reducing component count.
• High Data Rates: The device supports data rates up to 150 Mbps, making it suitable for high-speed communication protocols.
• Low Emissions: The ADuM3481 features low radiated emissions and has been designed to meet stringent EMC requirements, ensuring reliable performance in noise-sensitive applications.
• Wide Operating Temperature Range: The evaluation board is designed to operate over a wide temperature range, making it suitable for industrial environments.
• Easy to Use: The EVAL-ADUM3481EBZ comes with convenient access points for all relevant signals and power pins, enabling easy integration into test setups and prototypes.

Applications:

The EVAL-ADUM3481EBZ is ideal for a variety of applications, including but not limited to:

• Industrial automation and process control systems
• Medical equipment with stringent isolation requirements
• Automotive systems requiring reliable data and power isolation
• Isolated SPI interfaces and sensor interfaces

Summary:

The EVAL-ADUM3481EBZ evaluation board is a testament to Analog Devices Inc.'s commitment to providing advanced isolation solutions. It simplifies the process of evaluating the ADuM3481 isolator's performance and functionality, making it an invaluable tool for engineers in the early stages of design and testing. Whether for industrial, medical, or automotive applications, the EVAL-ADUM3481EBZ is designed to accelerate development time and ensure a smooth path to final product integration.
