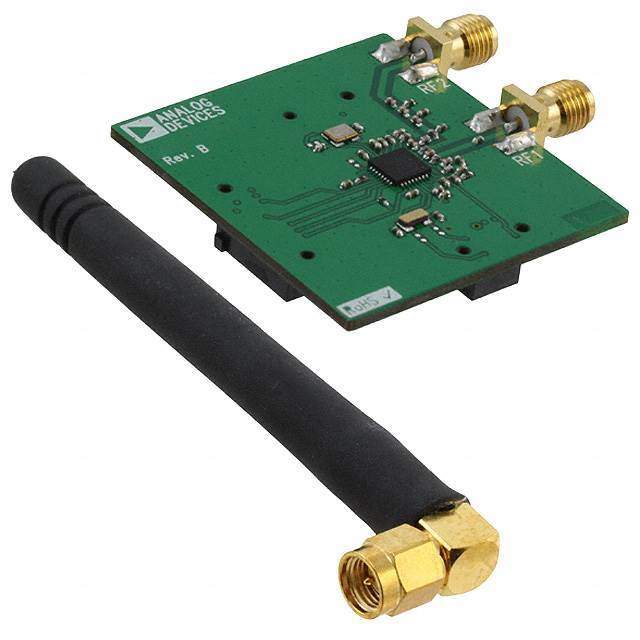

EVAL-ADF7023DB1Z - Analog Devices Inc.

The EVAL-ADF7023DB1Z from Analog Devices Inc. is a comprehensive evaluation board designed for the ADF7023, a low power, high performance, transceiver designed for operation in the global ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands. This evaluation board is an essential tool for engineers and developers working on wireless communication systems that require robust and energy-efficient data transmission capabilities.

Key Features:

• Frequency Range: The ADF7023 transceiver operates in the frequency bands of 431-464 MHz and 862-928 MHz, making it suitable for a variety of applications, including automated meter reading, home and building automation, wireless sensor networks, and industrial control.
• Modulation: Supports various modulation schemes such as 2-FSK, 3-FSK, 4-FSK, GFSK, MSK, GMSK, and OOK, offering flexibility to match specific application requirements.
• High Sensitivity and Selectivity: The ADF7023 features a high-performance RF transceiver core with excellent receiver sensitivity and selectivity, ensuring reliable communication even in challenging environments.
• Low Power Consumption: Designed for battery-powered applications, the ADF7023 provides low current consumption in both transmit and receive modes, as well as a power-saving sleep mode.
• Integrated Features: Includes an integrated packet handler, automatic frequency control, and an on-chip temperature sensor, reducing the need for external components and simplifying design.
• Development Support: The EVAL-ADF7023DB1Z comes with support for development, including comprehensive documentation, reference designs, and software tools to facilitate rapid prototyping and testing.

Applications:

The EVAL-ADF7023DB1Z is ideal for developing a wide range of wireless communication applications such as:

• Wireless Sensor Networks
• Home and Building Automation
• Industrial Control Systems
• Automated Meter Reading
• Security Systems
• IoT Devices

With its combination of high performance, low power consumption, and extensive development support, the EVAL-ADF7023DB1Z from Analog Devices Inc. provides an excellent platform for creating advanced wireless solutions.
