Product Overview: EVAL-ADF4350EB1Z from Analog Devices Inc.

The EVAL-ADF4350EB1Z is a fully featured evaluation board designed for the ADF4350, a fully integrated frequency synthesizer from Analog Devices Inc. This synthesizer is capable of generating a wide range of frequencies, from 137.5 MHz to 4.4 GHz, making it an ideal solution for a variety of applications including wireless communication, instrumentation, and base station equipment.

Key Features

• Wide Frequency Range: The ADF4350 allows for frequency synthesis in the range of 137.5 MHz to 4.4 GHz, which is divided into two bands (LF and HF bands).
• Integrated VCO: The on-board Voltage-Controlled Oscillator (VCO) simplifies design considerations by reducing the number of external components required.
• Programmable Dividers: It includes programmable dividers, allowing for fine resolution at a high frequency.
• Low Phase Noise: The device is designed to have low phase noise performance, which is critical for communication systems.
• Flexible Power Supply Options: The ADF4350 can operate with a power supply ranging from 3.0 V to 3.6 V.

Board Functionality

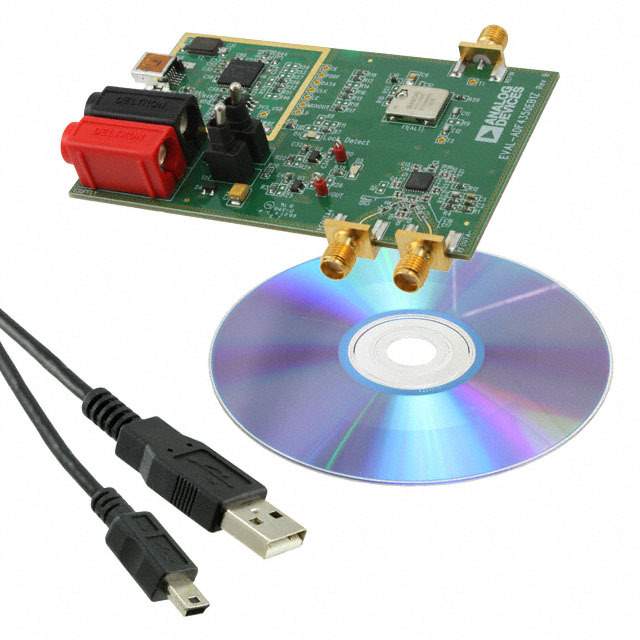

The EVAL-ADF4350EB1Z evaluation board is equipped with an USB interface for connection with a personal computer, enabling users to easily program the ADF4350 through the provided control software. The board also features various test points and indicator LEDs for operational status checks, as well as SMA connectors for RF outputs, which facilitate the connection to test equipment or other circuitry.

Applications

The ADF4350's wide frequency range and low phase noise characteristics make it suitable for a broad array of applications, including:

• Wireless Infrastructure (GSM, LTE, WiMAX, WLAN)
• Test and Measurement Equipment
• Clock Generation for Digital Converters
• Satellite Communication Systems

Additional Resources

Analog Devices Inc. provides extensive technical documentation for the EVAL-ADF4350EB1Z, including detailed datasheets, user guides, and application notes. These resources are designed to assist engineers in quickly integrating the evaluation board into their projects and to expedite the design process.

With its high performance, versatility, and ease of use, the EVAL-ADF4350EB1Z from Analog Devices Inc. is an excellent tool for developing and testing applications that require a reliable and precise frequency synthesizer.
