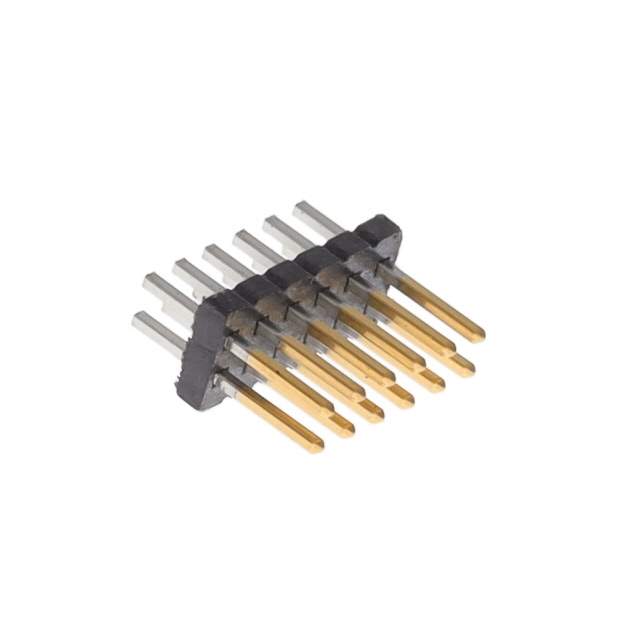

Same model may have multiple batches, images only for reference.

FTS-106-04-L-D

Name: FTS-106-04-L-D
Brand: Samtec Inc.
SKU: 1135408
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTS-106-04-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 12POS 1.27MM / Connector Header Through Hole 12 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTS
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.150" (3.81mm)
Contact Length - Post	0.090" (2.29mm)
Overall Contact Length	0.274" (6.96mm)
Insulation Height	0.034" (0.86mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTS-106
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	76
Win Source Part Number	1135408-FTS-106-04-L-D
Ultra Librarian 3D Model	Ultra Librarian FTS-106-04-L-D CAD Model

Alternative Products

Description

The FTS-106-04-L-D is a 2-row, 12-position header connector from Samtec Inc., designed for use in board-to-board or cable applications.

Fastening Type: push-pull
Cuttable: Yes
Contact Material: phosphor bronze
Insulation Material: liquid crystal polymer (LCP)
Connector Type: male pin
Mounting Type: through-hole
Contact Finish on Mating: gold
Contact Finish on Post: tin
Contact Finish Thickness on Mating: 10.0µin (0.25µm)
Operating Temperature Range: -55°C to 125°C
Current Rating: 3.4A per contact
Voltage Rating: -
