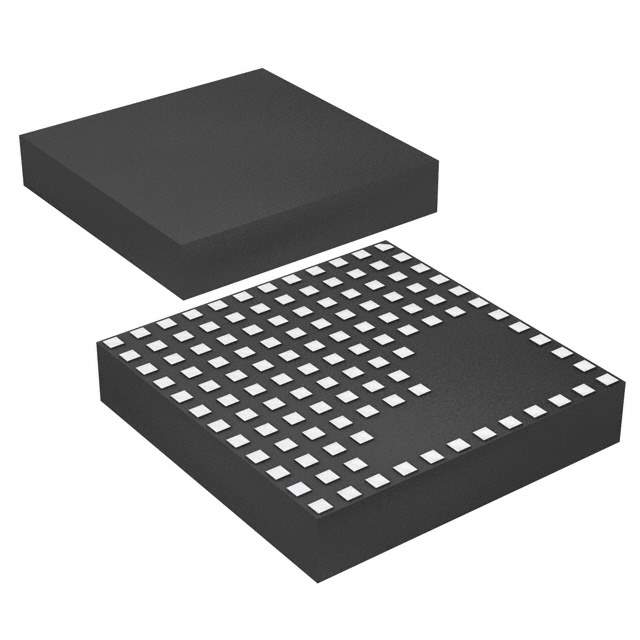

Analog Devices Inc. LTM4601EY-1#PBF Product Overview

The LTM4601EY-1#PBF is a high-efficiency, switch-mode step-down power module designed and manufactured by Analog Devices Inc., a leader in the field of high-performance analog technology. This compact and feature-rich power module is designed to simplify the implementation of power supply solutions in a wide array of applications ranging from telecommunications and networking to industrial and medical equipment.

Key Features

• Integrated Design: The LTM4601EY-1#PBF integrates a DC/DC controller, power switches, inductor, and all support components in a single package, reducing design complexity and saving board space.
• High Efficiency: With its advanced switch-mode design, the module offers high efficiency, which helps in reducing power loss and heat generation, thereby enhancing system reliability.
• Wide Input Voltage Range: It operates over a wide input voltage range of 4.5V to 20V, making it versatile for various supply voltages.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 5V, allowing for a broad range of use-cases and compatibility with different logic levels and device requirements.
• High Output Current: The module can deliver up to 10A of continuous output current, suitable for high-power applications.
• Thermal Management: The LTM4601EY-1#PBF comes in a thermally enhanced package, ensuring efficient heat dissipation and maintaining performance even under high load conditions.
• Protection Features: It includes overvoltage, overcurrent, and over-temperature protection, safeguarding the module and connected devices from potential damage.

Applications

The versatility of the LTM4601EY-1#PBF makes it ideal for a multitude of applications. It is particularly well-suited for use in:

• Telecommunication infrastructure
• Networking equipment such as routers and switches
• Industrial systems and controls
• Medical devices requiring reliable power solutions
• High-density distributed power systems

With its ease of use, including no requirement for external components, the LTM4601EY-1#PBF power module from Analog Devices Inc. is an excellent choice for designers looking to streamline their power supply design process, while ensuring high performance and reliability.
