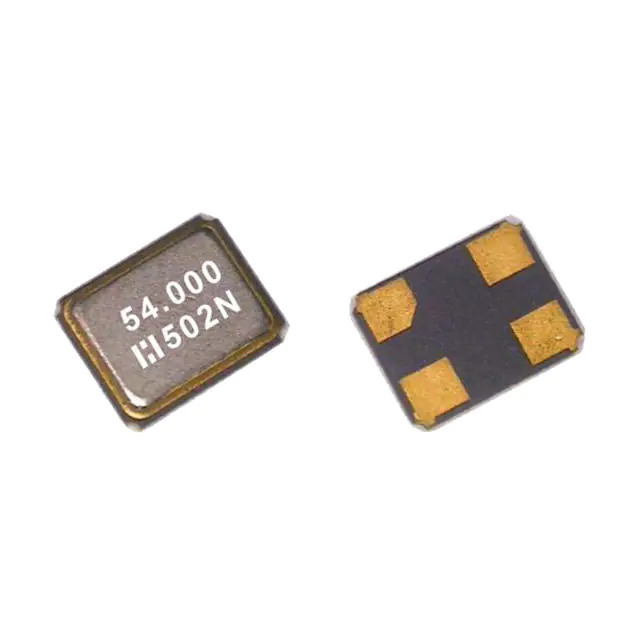

Same model may have multiple batches, images only for reference.
E3SB38E0X0006E Hosonic Electronic Co., Ltd
Same model may have multiple batches, images only for reference.

E3SB38E0X0006E

Part No E3SB38E0X0006E
Manufacturer Hosonic Electronic Co., Ltd
Catalog Oscillators
Description XTAL 3225 38.4MHZ, 10PF/10/10/-3
Datasheet
E3SB38E0X0006E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Hosonic Electronic Co., Ltd
Series E3SB
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 38.4 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.030" (0.75mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1366422-E3SB38E0X0006E
Ultra Librarian 3D Model Ultra Librarian E3SB38E0X0006E CAD Model

Description

The E3SB series from Hosonic Electronic Co., Ltd is a surface mount crystal with a frequency of 38.4 MHz.

  • Frequency: 38.4 MHz
  • Temperature Range: -30°C to 85°C
  • Package / Case: 4-SMD, No Lead
  • Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Operating Mode: Fundamental
