Analog Devices Inc. HMC493LP3TR Voltage-Controlled Oscillator

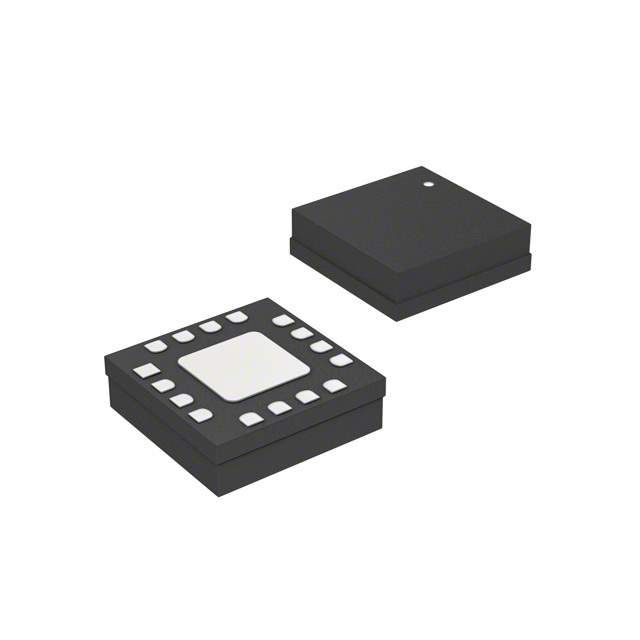

The HMC493LP3TR is a high-performance Voltage-Controlled Oscillator (VCO) designed and manufactured by Analog Devices Inc., a leader in the field of high-performance analog technology. This VCO is part of the Hittite Microwave Corporation product line, which has been integrated into Analog Devices. The HMC493LP3TR is housed in a compact 3x3 mm QFN package, making it suitable for space-constrained applications that require reliable frequency generation.

With a frequency range of 4.9 GHz to 5.9 GHz, the HMC493LP3TR offers a wide tuning range that is ideal for various applications, including point-to-point and point-to-multipoint radios, VSAT, military and space, test equipment, and telecom infrastructure. Its linear tuning characteristic ensures that frequency control is both precise and straightforward, allowing for consistent performance across the entire operating range.

The HMC493LP3TR is designed to deliver excellent phase noise performance, which is critical for maintaining signal integrity in communication systems. Low phase noise translates to better signal quality, reduced error rates, and improved overall system performance. This VCO also features a low pushing figure and excellent immunity to pulling effects, ensuring stable frequency output even in the presence of load impedance variations.

Power supply requirements for the HMC493LP3TR are modest, with a single positive supply voltage and a typical supply current of 25 mA. This makes it a power-efficient solution for systems where power consumption is a concern. Additionally, the VCO provides an output power of +5 dBm, which is sufficient for driving mixers or other RF components without the need for additional amplification.

For ease of integration, the HMC493LP3TR is offered in a RoHS-compliant, surface-mount package, which allows for efficient assembly in high-volume production environments. Its robust design ensures reliable operation over a wide temperature range, making it suitable for deployment in harsh environmental conditions.

Analog Devices Inc. provides comprehensive technical support and documentation for the HMC493LP3TR, ensuring that designers can leverage this VCO's capabilities to its fullest potential in their applications.
