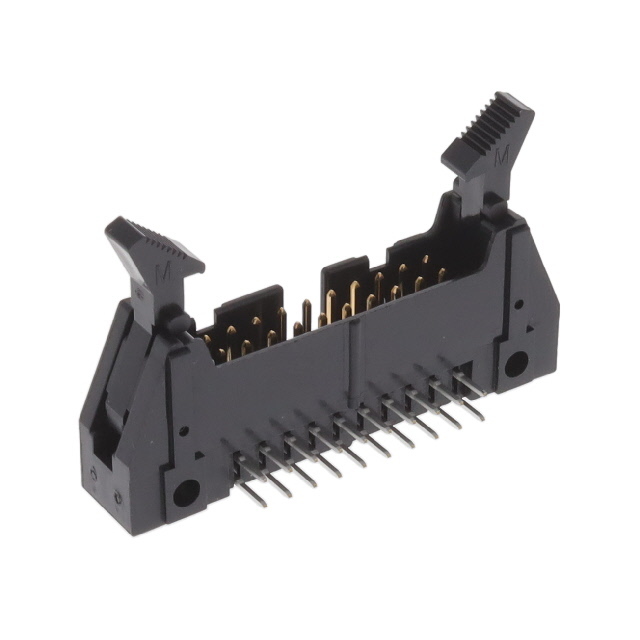

HIF3BA-20PA-2.54DS(63)

Name: HIF3BA-20PA-2.54DS(63)
Brand: Hirose Electric Co Ltd
SKU: 1479710
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HIF3BA-20PA-2.54DS(63)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Hirose Electric Co Ltd
Series	HIF3B
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	200V
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	HIF3BA
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1479710-HIF3BA-20PA-2.54DS(63)
Ultra Librarian 3D Model	Ultra Librarian HIF3BA-20PA-2.54DS(63) CAD Model
