ADUM4221BRIZ: An Isolated Half-Bridge Gate Driver from Analog Devices Inc.

The ADUM4221BRIZ is a robust, high-performance isolated half-bridge gate driver designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This innovative component is engineered to provide reliable and efficient control for switching power converters, motor drives, and other applications requiring high-speed, high-voltage gate control with galvanic isolation.

Key Features

• Isolation Technology: The ADUM4221BRIZ utilizes Analog Devices' proprietary iCoupler® technology to provide robust galvanic isolation between the input and output stages. This technology ensures a strong barrier against high voltage transients and prevents ground loops, thus protecting sensitive microcontroller or digital signal processor circuits.
• High-Voltage Operation: With a working voltage of up to 600V, this gate driver is well-suited for high-voltage applications, such as those found in industrial inverters and renewable energy systems.
• High-Speed Performance: The device offers fast propagation delays and short rise and fall times, which are essential for high-frequency switching applications to minimize power losses and improve efficiency.
• Dual-Channel Configuration: ADUM4221BRIZ features two independent driver channels that can be configured for half-bridge or other topologies, providing design flexibility and the potential for reducing component count.
• Integrated Miller Clamp: An integrated Miller clamp on the low-side gate driver helps to prevent gate voltage overshoot during fast switching events, enhancing the reliability of the system.

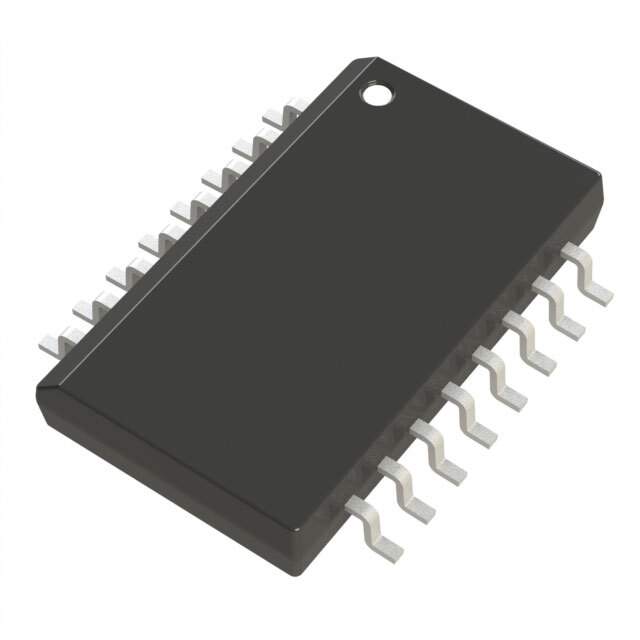

• Compact Package: The device is available in a compact, 16-lead SOIC package, which saves valuable board space while still offering excellent isolation capabilities.

Applications

The ADUM4221BRIZ is ideal for a range of applications where isolated gate driving is critical. It is particularly well-suited for:

• Switching Power Supplies
• Motor Control Systems
• Inverters and Converters
• Industrial Automation Equipment
• Renewable Energy Systems, such as Solar Inverters and Wind Turbine Converters

With its combination of high-voltage operation, fast switching capabilities, and compact form factor, the ADUM4221BRIZ from Analog Devices Inc. represents a state-of-the-art solution for designers looking to enhance the performance and reliability of their power management systems.
